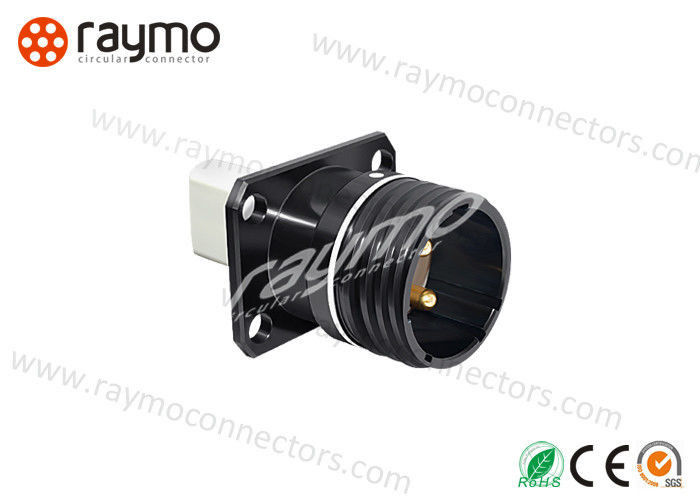

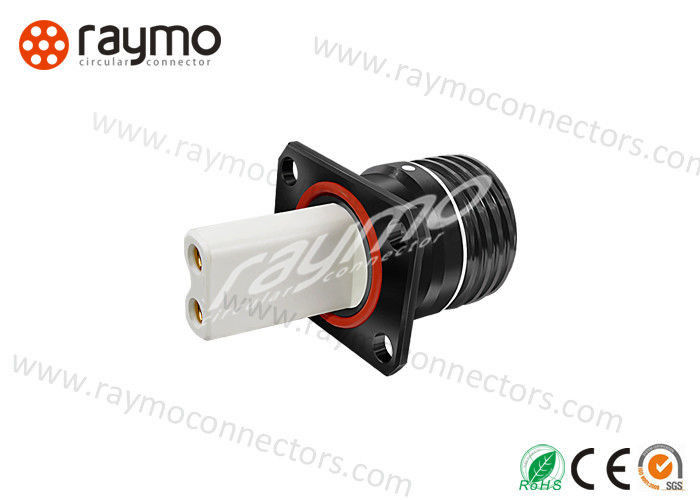

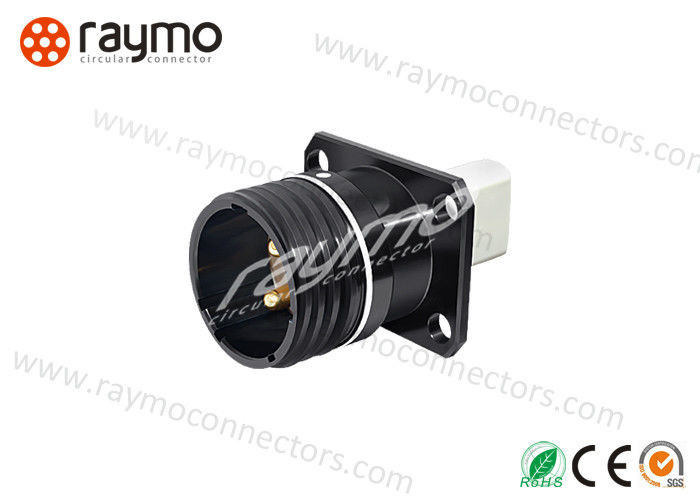

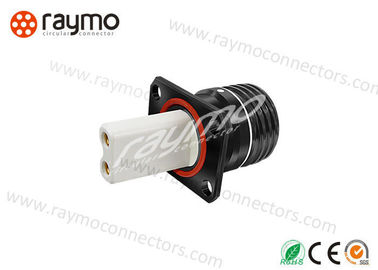

Military Defence Waterproof Power Connector Panel Mount Socket Miniature Size

Military Defence Waterproof Power Connector Panel Mount Socket Miniature Size
Military Defence Waterproof Power Connector Panel Mount Socket Miniature Size Military Defence Waterproof Power Connector Panel Mount Socket Miniature Size Military Defence Waterproof Power Connector Panel Mount Socket Miniature Size
Temel bilgi
Menşe yeri: Shenzhen, Çin
Marka adı: RAYMO
Sertifika: SGS ISO9001:2015 CE ROHS2.0 REACH
Model numarası: Fmn.2tm.302.js14
Min sipariş miktarı: 1 PC
Fiyat: negotiable
Ambalaj bilgileri: 50pcs/ctn
Teslim süresi: 2-3 iş günü
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: Haftada 50000 adet
Şimdi başvurun
Model: Rm-fmn.2tm.302.js14 PRCT Adı: panel konnektörü
Mevcut Kabuk: 00b, 0b, 1b, 2b, 3b, 4b, 5b İletişim Hayır: 2,3,4,5,6, .7,8,9,10,12,14,16,21,26,30,32
İzolatör malzemesi: PPS, Peek başvuru: Elektrik gücü
Vurgulamak:

outdoor electrical connector

,

waterproof dc connector

Our Company



RAYMO OEM waterproof power connector for military defence RM-FMN.2TM.302.JS14

FMN.2TM power connector, can be 100% compatible with JONHON connector,  Cable connector, panel mount socket



Raymo electronics technology ltd is a professional push pull connector manufacturer intergrating connector researching, designing and development,prction and sales !.

Raymo offer you various range of push pull circular connectors and cable assembly.

You will find raymo connectors in widely range of military denfence, medical, Test and measurement,High Speed Camera,Submarine industry.



Part no details.



Raymo Part No.   Item Description
RM-FMN.2TM.302.JS14    circular power connector, 2pin female contact, collet 14, brass with  Oxidation treatment in black colour





Specifcation



Operating voltage 300V
Current 35A
Voltage resistance 1000V AC
Insulation resistance ≥2000MΩ
Operating temperature -40°C +110 °C
Mating life 5000cycles
Salt spray 720hrs
Waterproof IP68
Max cable thickness 6.0mm²
Match cable OD φ11-φ14
RoHS 2.0 Compliance
CE Compliance





Technical Characteristics
Temperature Range - 65° C, +200° C Resistance to vibrations 15 g [10 Hz - 2000 Hz]
Shell Material Brass   Humidity up to 95% at 60° C/140F
Shock Resistance 100 g [ 6 ms] Salt spray corrosion test 720hr
Climatical Category 50/175/21 Shielding (min) > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating IP 68 Endurance(shell) 5000 mating cycles







Shell dimensions



Military Defence Waterproof Power Connector Panel Mount Socket Miniature Size 0

Certificates

   CE ROHS2.0 ISO:9001-2015 SGS


RAYMO Connectors advantages
  1. Cheap price, fast delivery,save your cost.
  2. Free samples.
  3. Easy mating, can be blind-mated guiding mechanism ensures precise alignment.
  4. Increased safety and user friendliness mechanical and color coding prevent misconnection.
  5. Convenient grip even with gloves circular connectors with ribbed housing profile.
  6. Increased equipment life span guiding mechanism optimally protects the contacts.
  7. Robust and shock resistant designs ideal for equipment used in the field.
  8. Long prct durability 5,000 mating cycles guaranteed.
   FAQ
  1. Can I order a small list ?  yes, you can, 1 piece is ok.
  2. What quote do you offer? EXW, FOB, CIF and others ways according the your needs.
  3. How transport? Sea Freight, Air Freight and others Express Delivery ways for you.
  4. What is the quality of your prcts guarantee? We have passed ISO9001:2015 Quality Management System Certification, CQM Quality Management System Certification and IQNet Quality Management System Certification, If the quality doesn't accord the standard, you can exchange the goods for free.
  5. Do you have after-sales service? Certainly,you can contact us at any time.

Get a price, lead time, datasheet , NOW !
