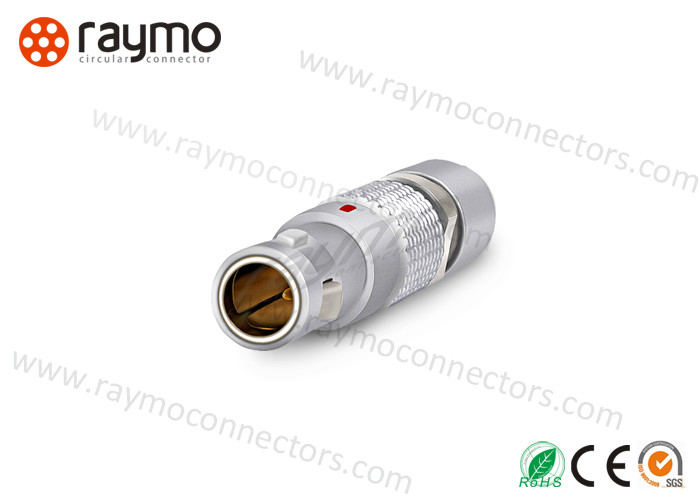

Name: 6 Contacts Metal Cable Connector Natural Chrome Plated Black Bend Relief
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: RM-FGG-1BC-306JS52Z
Price: 11.10 USD
Availability: InStock

6 Contacts Metal Cable Connector Natural Chrome Plated Black Bend Relief

Temel bilgi

Menşe yeri:	Guangdong, Çin
Marka adı:	RAYMO
Sertifika:	ISO9001:2015 CE ROHS2.0 REACH SGS
Model numarası:	RM-FGG-1BC-306JS52Z

Min sipariş miktarı:	1 PC
Fiyat:	negotiable
Ambalaj bilgileri:	300 ADET/KOLİ
Teslim süresi:	1-7 iş günü
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Haftada 50000 adet

Şimdi başvurun

Anahtar Kelimeler:

İtme çekme

PRCT Adı:

Kablolu erkek konektörü

Cinsiyet:

erkek

Kabuk boyutu:

00b, 0b, 1b, 2b, 3b, 4b, 5b

İletişim Hayır:

2,3,4,5,6, .7,8,9,10,12,14,16,21,26,30,32

IP seviyesi:

IP50

İzolatör malzemesi:

PPS, Peek

Dayanıklılık:

> 5000 zaman döngüsü

Malzeme:

Doğal/Siyah Krom Kaplama Pirinç

başvuru:

Ses ve Video

Sıcaklık:

- 80 Celius derece ~ +350selius derece,

Tip:

Dinlemek

Vurgulamak:

electronics component connectors

cable connector plug

prcts discription

Part No.example:

RM-FGG-1BC-306JS52Z=FGG.1B.306.JS52Z

Explanation : FGG: straight plug, 1B : 1B size of outer shell, C: natural-chrome plated , 306: 6 contacts. JS: male contact in solder; 52: 52 cable collect for Ø4.2-5.2mm cable, Z: with black bend relief

6 Contacts Metal Cable Connector Natural Chrome Plated Black Bend Relief 3

Main Features :

1. Security of the push-pull self-latching system.
2. 100% compatible with original connectors;
3. Multipole from 2 to 32pin contacts available
4. Key option: 1 key(G) & 2 key with different degree:30°,45°,60°,90°,...145°
5. 360°screening for full EMC shielding.
6. High packing density for space savings

7. Cable assembly as customers real needs (OEM is available)
8. Certification: CE, ROHS, Reach, SIO9001,SGS

9. Fast delivery ( 3-15 working days )

Prction Series	B series	Type	B series FGG straight plug
Compability	100% compatible with original connector	Endurance	>5000 cycle
Shell Material	Brass with pearl-chrome/black-chrome	Temperature range	-55°C, +250°C
Shell Size	00,0B,1B,2B,3B	Humidity (max)	<=95% [at 60 deg C /140 F]
Contact Material	Brass(Gold plated)	Vibration	15 g [10 Hz - 2000 Hz]
Contact No.	2-32 pins	Shock Resistance	100 g [ 6 ms]
Gendar	Male / female	Salt Spray Corrosion	>96 hr
Contact type	For solder/print(PCB)/90° PCB	Climatical Category	55/175/21
Insulator Material	PPS	Conductor	AWG
Cable Ø	Ø1~11mm	Rated Voltage	≤200V
Keying	1 key(G) & 2 key with different degree	Rated Current
Certificate	CE/RoHs/Reach/ISO9001/SGS	Shielding (min)	75 dB (10 MHz) 40 dB (1 GHz)
MOQ	1 pcs	IP Rating	IP 50

Size	Contact no.
00	2,3,4
0B	2,3,4,5,6,7,9
1B	2,3,4,5,6,7,8,10,12,14,16
2B	2,3,4,5,6,7,8,10,12,14,16,18,19,26, 0
3B	3,4,7,8,10,12,14,16,18,21,30,32

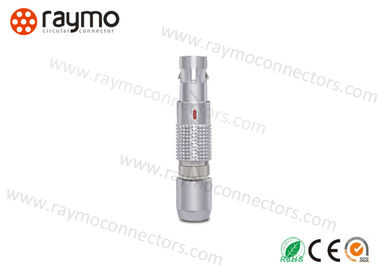

Colour : Brass with Natural-chrome plated

6 Contacts Metal Cable Connector Natural Chrome Plated Black Bend Relief 6

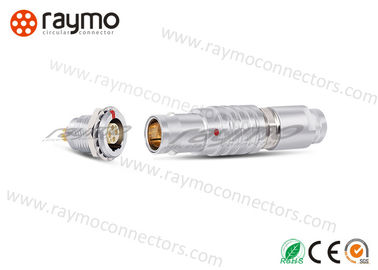

Colour : Brass with Black-chrome plated

Colour : Brass with Black-chrome plated 6 Contacts Metal Cable Connector Natural Chrome Plated Black Bend Relief 7

FAQ

1. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.

2. Are your company a professional manufacturer?

Raymo: Yes, we specialized in prcing Circular Connectors and cable assembly since 2010.
Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.

3. Free sample?
Raymo: Available. Any needs, please contact us.

4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.

5.What is your payment terms?
Raymo: 100% T/T deposit when customer place order.

6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them before shipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
