Name: Compatible Circular Push Pull Connectors PEEK Insulator Magnetic Security Locking
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: Fhg.0b.306.clad52z
Price: 11.10 USD
Availability: InStock

Compatible Circular Push Pull Connectors PEEK Insulator Magnetic Security Locking

Temel bilgi

Menşe yeri:	Shenzhen, Çin
Marka adı:	RAYMO
Sertifika:	ISO:9001-2015, REACH, SGS, RoHS2.0, CE
Model numarası:	Fhg.0b.306.clad52z

Min sipariş miktarı:	5 adet/adet
Fiyat:	negotiable
Ambalaj bilgileri:	Plastik Torba ve Karton
Teslim süresi:	5-7wds
Ödeme koşulları:	Western Union, L/C, D/A, D/P, T/T
Yetenek temini:	5000 Adet / Hafta

Şimdi başvurun

Kabuk boyutu:

00b, 0b, 1b, 2b, 3b, 4b

Tip:

Lemo FHG Dairesel Konektörü

İletişim Numarası.:

2,3,4,5,6,7,9pin

yalıtkan:

PPS/PEEK

başvuru:

Bilgi sistemi

IP Sıralaması:

IP50

Dayanıklılık:

5000 kez itme çekme

Bağlayıcı tipi:

Lehim Kişileri

Vurgulamak:

electronics component connectors

electronic cable connectors

SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented circular push pull connector and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers

Lemo Push Pull Circular Connectors FGG FHG FNG 1B 6 Pin Plug Lemo Compatible Connectors

RAYMO P/N	Lemo P/N	P/N
RM-FHG-0BC-306-JS52Z	FHG.0B.306.CLAD52Z	W10L0C-P07

Description:

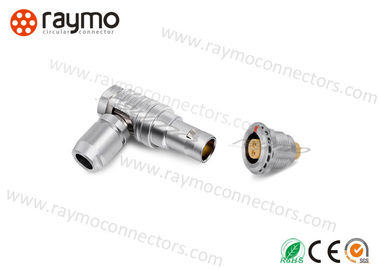

Lemo FHG 307 6pin cable mount circular connector,elbow type,male solder contacts
100% compatible with LEMO B series / L series
0B 1B 2B 3B 4B size with 2-32pins for your option
high packing density for space savings
5000 times push pull

Technical Characteristics
Temperature Range	- 65° C, +200° C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shell Material	Brass with chrome plated	Humidity	up to 95% at 60° C/140F
Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>144hr
Climatical Category	50/175/21	Shielding (min)	> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating	IP50	Endurance(shell)	5000 mating cycles

RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application

Shell size	Contacts no. ( Both with Solder & PCB type )
Shell size	Contacts no. ( Both with Solder & PCB type )
00	2	3	4
0B	2	3	4	5	6	7	9
1B	2	3	4	5	6	7	8	10	12	14	16
2B	2	3	4	5	6	7	8	10	12	14	16	19
3B	3	4	6	8/(6+2)	9(8+1)	10	12	14(13+1)	14	16	18	21	26	30	32
4B	7	10	24

Why choose us:

100% compatible lemo connector
Help you save at least 50% cost
Cable assembly offer,help you save prction time

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
