Custom Unipole Half Moon Connector , Cable Elbow Connector Adapter Low Voltage

Custom Unipole Half Moon Connector , Cable Elbow Connector Adapter Low Voltage
Custom Unipole Half Moon Connector , Cable Elbow Connector Adapter Low Voltage Custom Unipole Half Moon Connector , Cable Elbow Connector Adapter Low Voltage Custom Unipole Half Moon Connector , Cable Elbow Connector Adapter Low Voltage Custom Unipole Half Moon Connector , Cable Elbow Connector Adapter Low Voltage
Temel bilgi
Menşe yeri: Shenzhen, Çin
Marka adı: RAYMO
Sertifika: CE, REACH, ISO:9001-2015
Model numarası: Fla.0s.250.clac32
Min sipariş miktarı: 1 Parça/Parça
Fiyat: negotiable
Ambalaj bilgileri: Plastik Torba ve Karton
Teslim süresi: 5-7 iş günü
Ödeme koşulları: T/T, Western Union, D/A, D/P, L/C, MoneyGram
Yetenek temini: 5000 Adet / Hafta
Şimdi başvurun
Model: Kablodan kablo konnektörüne Seri: Lemo Fla Dirseği (90 °) Fiş
Kabuk boyutu: 0s, 1s, 2s İletişim Numarası.: Koaksiyal, 50ohm ve 75ohm Avaialble
başvuru: Ses video yalıtkan: PPS, Peek
Vurgulamak:

cable elbow connector

,

cable to cable connector



SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing mental and plastic circulor push-pull connectors and cable assemblies to serve over 75 countries and regions since 2010.Prcts can be 100% compatible with original ones(LEMO,FISCHER,HIROSE,BINDER SERIES)



RM-S series Push pull locking metal connector S-series connector with Half-moon type insulator, cable to cable connector, free socket, inline connector



Push-Pull self-latching circular half moon connector, Lemo FLA Elbow (90°) plug, cable connectors, coaxial contacts



Part No.

FLA.00.250.CLAC32

Description:

FLA 0S Series circular push pull connector,straight plug with cable collet, 50ohm contacts,outer shell in chrome-plated brass,PPS insulator, C type collet for a 3.2 mm diameter cable.





Technical Characteristics


Temperature Range - 55° C, +200° C Resistance to vibrations 10-2000 Hz, 15g
Shell Material Brass with chrome plated Humidity up to 95% at 60° C
Shock Resistance 100 g, 6 ms Salt spray corrosion test >96hr
Climatical Category 50/175/21 Shielding (min) > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating IP 50 Endurance(shell) ≥5000 mating cycles



Main Futures



1

can be 100% compatible with original Lemo connector

2

Half-moon type Secure high performance push-pull Self-locking system

3

polarisation by stepped insert (half-moon)

4

360° screening for full EMC shielding

5

can plated with white or black chrome

6

Certificate:ISO:9001-2015, CE ,RoHS2.0, SGS, Reach



Raymo's connectors can be used in below Application:
Communications, Automotive, Industrial Control, Audio-video, Aviation, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application

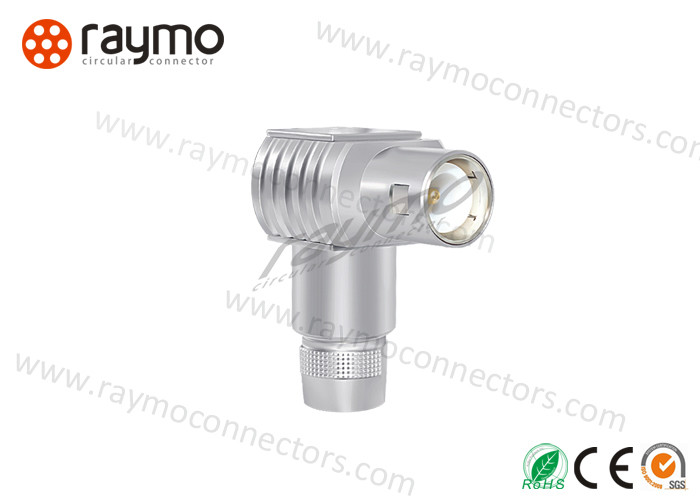

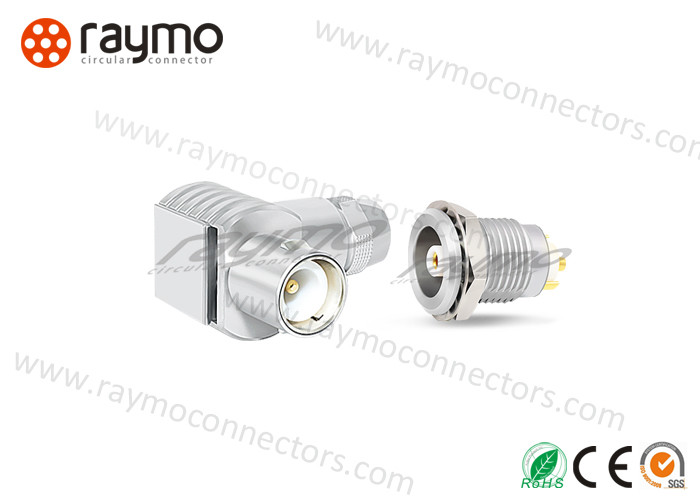

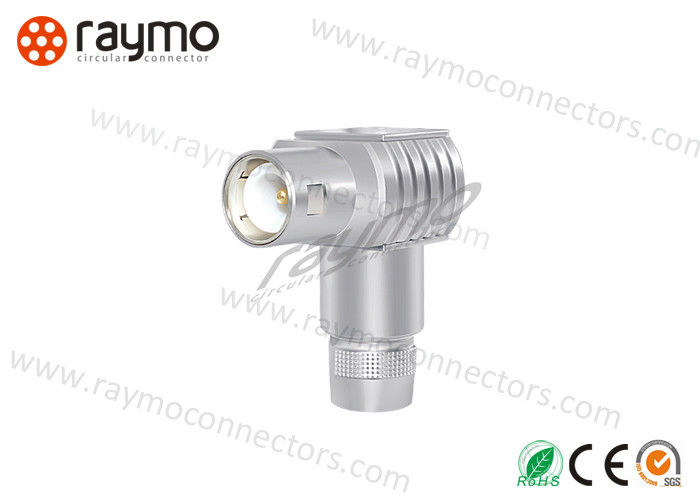

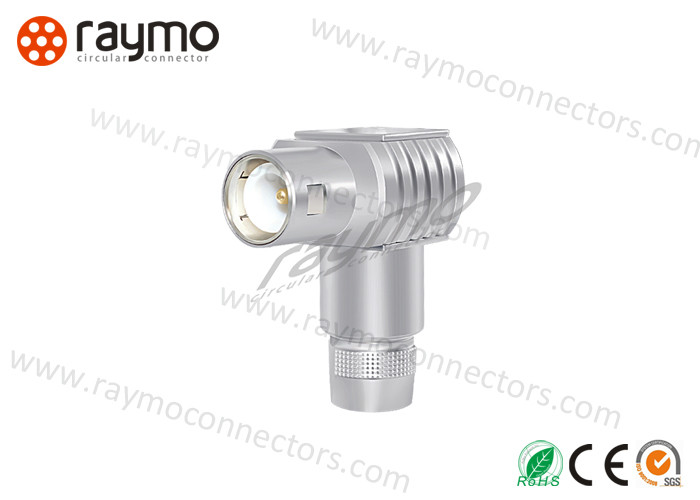

RM-S series FLA Cable mount Plug picture
Custom Unipole Half Moon Connector , Cable Elbow Connector Adapter Low Voltage 0


Why Choose US?

Except connectors,we do cable assemble for circular connectors too.Just tell us your need, leave the rest to RAYMO!

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
