Ana sayfa ÜrünlerDairesel su geçirmez konektör102 103 Series 2pin to 16pin Hermetic Non Locking Panel Mount Male Connector SFA 103 A 054

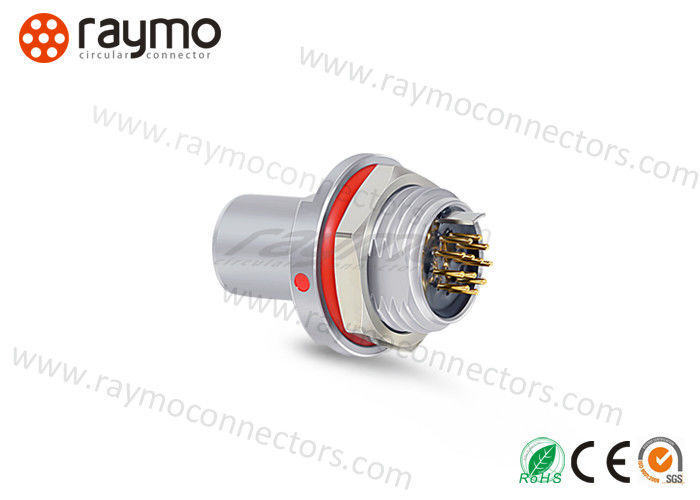

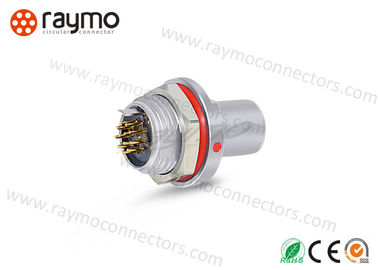

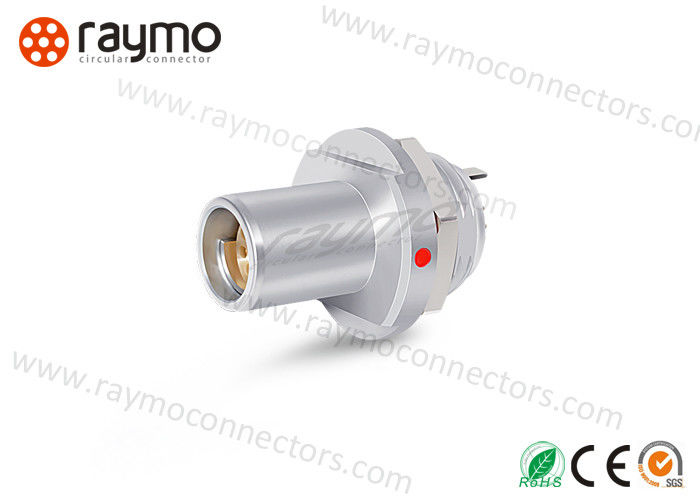

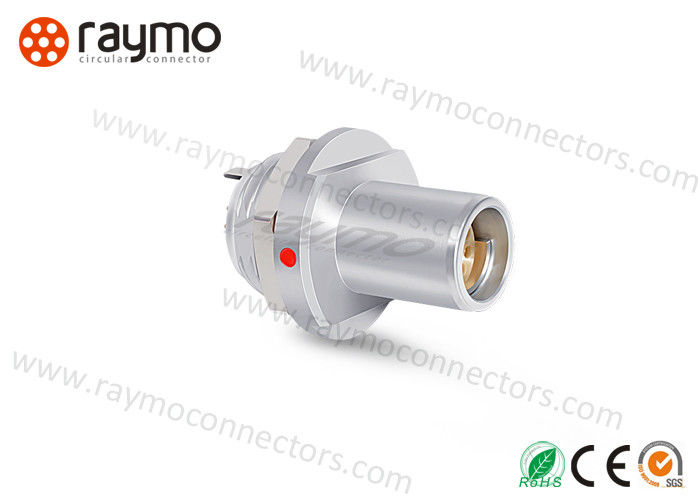

102 103 Series 2pin to 16pin Hermetic Non Locking Panel Mount Male Connector SFA 103 A 054

102 103 Series 2pin to 16pin Hermetic Non Locking Panel Mount Male Connector SFA 103 A 054
102 103 Series 2pin to 16pin Hermetic Non Locking Panel Mount Male Connector SFA 103 A 054
102 103 Series 2pin to 16pin Hermetic Non Locking Panel Mount Male Connector SFA 103 A 054 102 103 Series 2pin to 16pin Hermetic Non Locking Panel Mount Male Connector SFA 103 A 054 102 103 Series 2pin to 16pin Hermetic Non Locking Panel Mount Male Connector SFA 103 A 054 102 103 Series 2pin to 16pin Hermetic Non Locking Panel Mount Male Connector SFA 103 A 054
Temel bilgi
Menşe yeri: Guangdong, Çin
Marka adı: RAYMO
Sertifika: CE / RoHS / SGS / ISO9001:2015
Model numarası: RM-SFA-1F1C-P05JS
Min sipariş miktarı: 1 parça
Fiyat: negotiable
Ambalaj bilgileri: PE Torba ve Karton
Teslim süresi: 5-8 iş günü
Ödeme koşulları: T/T, L/C
Yetenek temini: Haftada 5000 adet
Şimdi başvurun
PRCT Türü:: Hermetik panel montaj fişi Kabuk Boyutu:: 103/1f, 102/0f
Başvuru:: Tıbbi, Makineler, Askeri, Ses ve Video, Otomatik İletişim Hayır.:: 5 pim (2, 3, 4 …… 16 pim mevcuttur)
İzolatör:: PPS / PEEK Dış kabuk malzemesi:: krom kaplamalı pirinç
Renk:: Gümüş / Siyah Temas malzemesi: Altın kaplamalı pirinç
temas türü:: Lehim IP Derecesi:: IP68
Dayanıklılık:: 5000 devir Kablo Montajı:: Evet
üretici firma:: Evet Müşteri servisi:: shenzhen
Vurgulamak:

waterproof wire connectors

,

waterproof electrical connectors

Prction description:

Part No: RM-SFA-1F1C-P05JS / SFA 103 A 054 -130

Description: SFA 103/1F series straight plug, keying code 1, 5pin fixed panel mount plug , in solder type, PPS insulator, outer shell in natural chrome plated brass



Mechanical and Climatical Characteristics
Characteris Value Standard
Endurance: >5000cycles IEC60512-5test9a
Humidity: Up to 95% at60°C
Temperature range: -55°C, +250°C
Resistance to vibra: 10-2000Hz,15g IEC 60512-4 test 6d
Shock resistance: 100g, 6ms IEC 60512-4 test 6c
Salt spray corrosion test: >96h IEC 60512-6 test 11f
Protection index (mated): IP68 IEC 60529
Climatical categery: 55/175/21 IEC 60068-1
Electrical Characteristics
Characteris Value Standard
Shielding efficiency at 10 MHZ >95 dB IEC 60619-1-3
at 1 GHz >80 dB IEC 60619-1-3



Main features:

  •  Easy mating, can be blind-mated
  •  Increased safety and user friendliness
  •  Convenient grip even with gloves
  •  Increased equipment life span
  •  Robust and shock resistant designs
  •  Compact and lightweight construction
  •  High pin density and hybrid contacts
  •  High performance connectors
  •  Sealed up to IP68 and corrosion resistant
  •  Sterilizable

Photo & Dimensions:

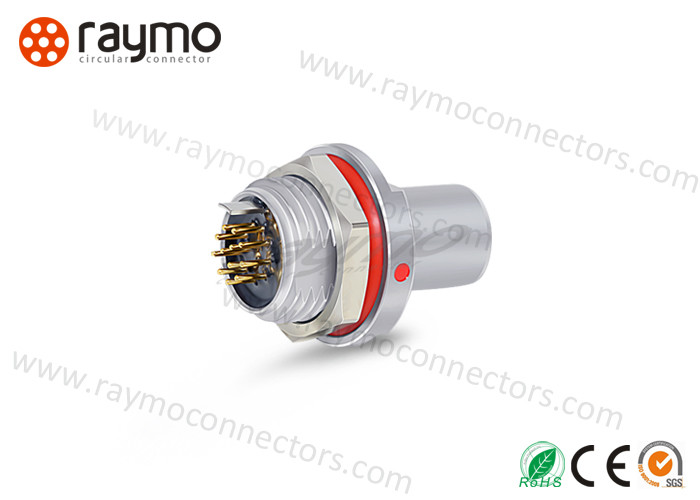

102 103 Series 2pin to 16pin Hermetic Non Locking Panel Mount Male Connector SFA 103 A 054 0

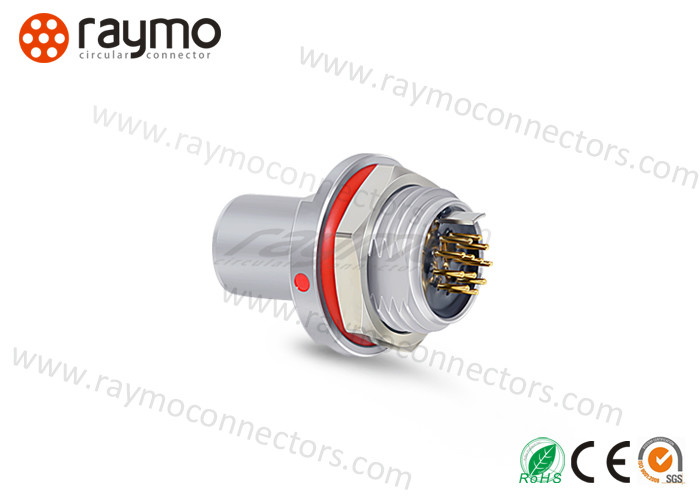

102 103 Series 2pin to 16pin Hermetic Non Locking Panel Mount Male Connector SFA 103 A 054 1





Application

RAYMO's high quality connectors are found in a variety of challenging applications and environmetns including:

Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor, Sensor Systems Instrumentation, Analysis Application.

About us

SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing, Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010.



With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solutions to meet customer's real needs in this fields.



Aimed on offering customer qualified and suitable connectors and cable assemblies, our factory has already designed and developed over 3,000 types of connectors and 1,000 kinds of OEM cable assemblies based on customer's real needs.

FAQ

1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing Circular Connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.


2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.


3. Free sample
Raymo: Available. Any needs, please contact us.


4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.


5. What is your payment terms?
Raymo: 100% T/T prepayment when customer place order .


6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.

RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application.
