1. Brief intrction
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED has been specializing in prcing Waterproof Connector Metal Fast Lock for many years, we providing high quality waterproof metal connector Prcts. Quality is our priority. Raymo always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001, If you are searching for waterproof connector metal fast lock, please feel free to contact us.
Connectors can corss with LEMO, Fischer, , BINDER, HIROSE and 38999.
circular waterproof connector B series, Raymo RM-L IP68 connector for automative, 9pins power connector
Substitute with S1/ S2 cable plug connector, more cheaper and short delivery time

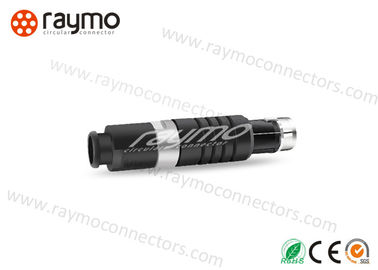

RM-FS2.0L1C.P09JS50Z=straight plug, 0L series, key 1, 0 degree,,ultopole contacts 9pins, outshell in natural chrome -plated brass, PPS insulator, male solder contacts,collet for 4.2-5.2mm diameter cable,IP68
2. Features and Benifits
Push-pull Self-locking Metal Connector
Compact and lightweight construction
The unique design of the contact core makes it safe and reliable in all environments
Available solder , PCB and right angle PCB contact
360° EMC shielding
Alignment Key and Polarized Keying System to avoid cross-interface
3. Application
Military
Automotive
Aviation
Industrial Control
Information Systems
Industrial electronics
Test and measurement
Data Transfer Equipment
Sensor & Sensor Systems Instrumentation
4. RM-L series FS2, Prcts Photo, Shell size and Dimension
Alignment key and Polarized Keys( RM-L series)
RM-L series connector model type are composed of five letters
The last letters indicate the key position and the contact type(male or female)
5. Characteristics
| Temperature Range |
- 65° C, +200° C |
Resistance to vibrations |
15 g [10 Hz - 2000 Hz] |
| Shell Material |
Brass with chrome plated |
Humidity |
up to 95% at 60° C/140F |
| Shock Resistance |
100 g [ 6 ms] |
Salt spray corrosion test |
>144hr |
| Climatical Category |
55/175/21 |
Shielding (min) |
> 95dB [ at 10 MHz], > 80 dB [ at 1 GHz] |
| IP Rating |
IP 68 |
Endurance(shell) |
≥5000 mating cycles |
6. Why Choose US?
-
100% compatible with lemo, , fischer connector
-
Help you save at least 50% cost
-
All the prcts we got CE, ROHS, SGS,ISO9000 certificate
-
Fast delivery: 2-15 working days
-
Cable assembly offer, help you save prction time
- We can provide OEM/ODM service and cable assembly solution
it has excellent compatibility with many leading supplier
our company has over 9 years experience and strong professional research and development capabilities.Advanced development and management, comprehensice R&D TESTING and highly automatic prction line make our prcts high reliablilyty and high performance.
-
Our comapny has passed ISO90001,and got CE, REACH, RoHS and SGS certification
7. Choosing tip
If you have ordered this shell connector and know the original model P/N,please tell us.We will directly offer you our correspinding one.
If you don't know much about the connector,please make choose according the following factors:
The use of enviroment,indoor or ourdoors,waterproof or not
The panel hole size, to seclect the approproate plug and socket of right dimension
the current voltage and the realization of the function, to determin the cores
seclect the appropriate clam diameter and sheath
according to the actual needs of different angles of the keys, to determin the keying
Solve the original brand's high cost and long lead time!
