Name: OEM ODM Industrial Wire Connectors Custom Design Small Size For Audio Video
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: 09-0301-09-02
Price: 1.50 USD
Availability: InStock

OEM ODM Industrial Wire Connectors Custom Design Small Size For Audio Video

Temel bilgi

Menşe yeri:	Shenzhen, Çin
Marka adı:	RAYMO
Sertifika:	RoHS, REACH, SGS, ISO:9001-2015, CE
Model numarası:	09-0301-09-02

Min sipariş miktarı:	1 Parça/Parça
Fiyat:	negotiable
Ambalaj bilgileri:	PE Torba ve Karton
Teslim süresi:	3-5 iş günü
Ödeme koşulları:	Western Union, T/T, Moneygram, D/P, D/A, Moneygram, L/C
Yetenek temini:	5000 Adet / Hafta

Şimdi başvurun

Tip:

dişli elektrik dairesel konektörü

Cinsiyet:

erkek

İletişim Numarası.:

2.3.4.5.6.7.8.12pins

yalıtkan:

PA66

başvuru:

Ses video

Terminaller:

Erkek lehim kontakları

Vurgulamak:

threaded wire connectors

threaded cable connectors

threaded Electrical Connector, Circular connectors 2pins,Binder M16 680 678 series, 09-0301-09-02

Prcts Description

RM-M16 series are alternative with BINDER 678 AND 680 series
09-0301-09-02= RaymoRM-FGG.M16.A02JS040Z

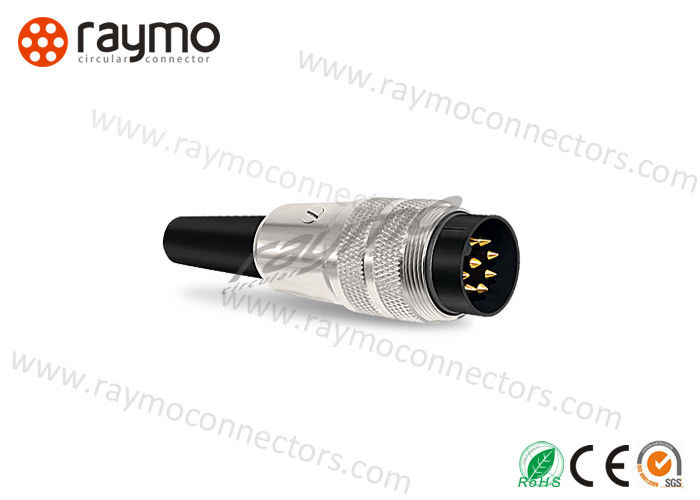

Cable mount plug,2pins
male solder contacts ,shell in plated brass

Multiples contacts are available

Series	IP	Shell Size	Contacts No. with solder & PCB type
RM-M16	40	M16	2	3	4	5	6	7	8	12

Mian Features

Screw locking System
1,000 mating cycles
Compact design with High contact density
Mechanical and color coding
Extremely rugged and solid and Salt spray resistance
Tested according MIL
Excellent data transmission

Characteristics

Shell size	M16	Shell model	Straight plug FGG
Gender	Male, Female	Contact No.	2,3,4,5,6,7,8,12
MOQ	1pc	Free Sample	available
Endurance(shell)	5000 mating cycles	IP Level	IP50

Brief intrction

RAYMO is a manufactuer that:

Focus on manufacturing & exporting various metal & plastic circular push pull connectors, cable assembly.
Can be 100% compatible with original LEMO • •FISCHER• HIROSE • BINDER •Military 38999
Series has RM-B, RM-K, RM-S, RM-F,RM-E,RM-HR10A, RM-P, RM-M4, RM-M12, RM-M16, BNC, B680,
B423 , 38999, 26482
CO, Form A, Form E for customer clearance
CE, ROHS, REACH, ISO:90001-2015, SGS Audited manufacturer
All the items can work normally after 5000times mating

Pictures for refer, Panel soclet

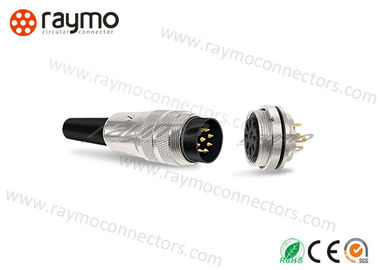

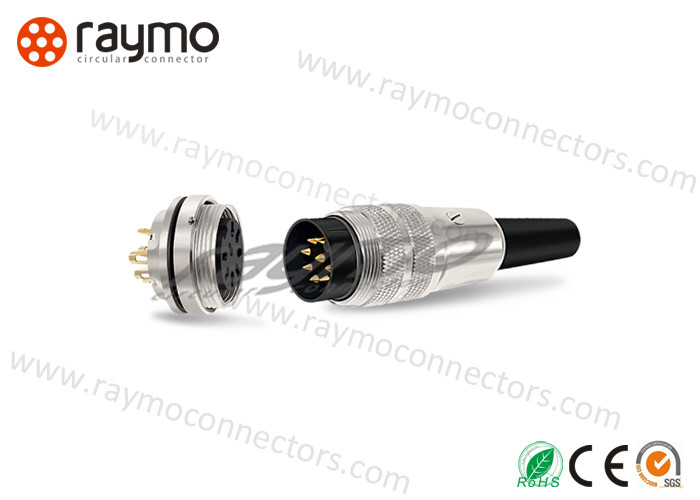

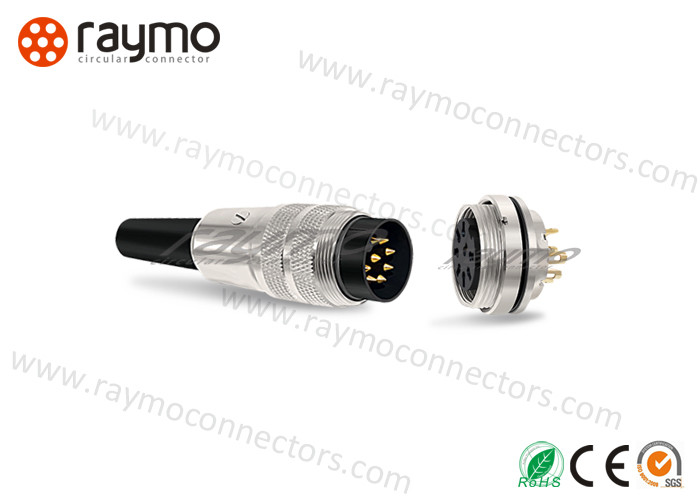

OEM ODM Industrial Wire Connectors Custom Design Small Size For Audio Video 0

OEM ODM Industrial Wire Connectors Custom Design Small Size For Audio Video 1

Why Choose US

100% compatible with lemo, , fischer connector
Help you save at least 50% cost
All the prcts we got CE, ROHS, SGS,ISO9000 certificate
Fast delivery: 2-15 working days
Cable assembly offer, help you save prction time

Our Exhibition

2020.11	Electronica Munich, Germany
2019 9.24-9.26	Testing Expo, Shanghai
2018 11.12-11.15	Electronica Munich, Germany
2017 9.11-9.16	NAB Show,Netherlands
2016 4.11-4.15	HK Fair
2015 10.2-10.7	ICEEB, Brasil
2014 10.11-10.15	HK Fair
2014 4.11-4.15	HK Fair

Choosing tip

If you have ordered this shell connector and know the original model P/N,please tell us.We will directly offer you our correspinding one.
If you don't know much about the connector,please make choose according the following factors:
The use of enviroment,indoor or ourdoors,waterproof or not
The panel hole size, to seclect the approproate plug and socket of right dimension
the current voltage and the realization of the function, to determin the cores
seclect the appropriate clam diameter and sheath
according to the actual needs of different angles of the keys, to determin the keying

Solve the original brand's high cost and long lead time!
