Prct Description
P/N: RM-EXG-1BC-308KV (EXG.1B.308.HLN)

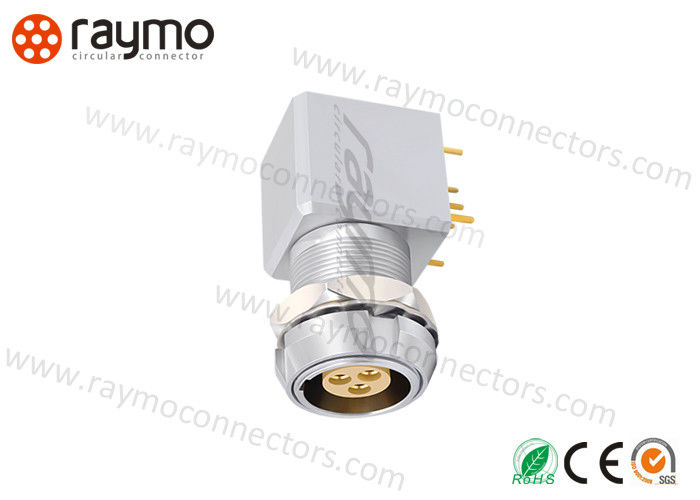

Description: Back panel mount elbow (90°) Receptacle for printed circuit, 1B series, 1 key (G), 0 degree, 8 pins female solder contacts, PPS insulator, outer shell in natural chrome plated brass, solder for screw locking
| Technical Characteristics |
|
Endurance
|
|
Salt spray corrosion test
|
>96h
|
|
Humidity
|
Up to 95% at 60°C
|
Protection Index (mated)
|
IP50
|
|
Temperature range
|
|
Climatical category
|
55/175/21
|
|
Resistance to vibration
|
10-2000Hz,15g
|
Shielding
|
>75db at 10MHZ
>40db at 1GHZ
|
|
Shock resistance
|
|
Certification
|
CE, RoHS, SGS
ISO9001:2015
|
Main features:
- Compact structure, small and smart;
- High density arrangement in multi-contact series;
- Push-Pull & self-latching system;
- High quality with reasonable prices.
| Shell size |
Contacts No. in solder / PCB type |
One key |
Two keys in different degree |
| 00B |
2, 3, 4 |
0° (G) |
30° (A), 60° (B), 45° (J) |
| 0B |
2, 3, 4, 5, 6, 7, 9 |
0° (G) |
30° (A), 60° (B), 90° (C), 135° (D), 145° (E), 155° (F), 45° (J), 70° (K), 80° (L), 110° (M) |
| 1B |
2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16 |
0° (G) |
30° (A), 60° (B), 90° (C), 135° (D), 145° (E), 155° (F), 45° (J), 70° (K), 80° (L) |
| 2B |
2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19, 26 |
0° (G) |
30° (A), 45° (B), 60° (C), 95° (D), 120° (E), 145° (F), 37.5° (J), 52.5° (K), 70° (L) |
| 3B |
3, 4, 6, 7, 8, 10, 12, 14, 16, 18, 21, 30 |
0° (G) |
30° (A), 45° (B), 60° (C), 95° (D), 120° (E), 145° (F), 37.5° (J), 52.5° (K), 70° (L) |
Photo & Dimensions:
Application
RAYMO's high quality connectors are found in a variety of challenging applications and environmetns including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor, Sensor Systems Instrumentation, Analysis Application.
