Name: Quick Locking Circular Push Pull Connectors With Cable Solder PCB Type
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: FEG.0B.303.Clac52Z
Price: 11.10 USD
Availability: InStock

Customized Solutions B/K Series Quick Locking Push Pull Circular Automotive Connector with Cable/Solder/PCB Type

Description FEG.0B.303.CLAC52Z

Straight plug,Male solder contacts,outer shell in natural chorme plated brass, 52 cable collet
IP54protection index when mated
Cable to Cable Circular push pull Connectors

Shell size and contacts for option

Shell size	Contacts no. ( Both with Solder & PCB type )
Shell size	Contacts no. ( Both with Solder & PCB type )
RM-0B	2	3	4	5	6	7	9
RM-1B	2	3	4	5	6	7	8	10	12	14	16
RM-2B	2	3	4	5	6	7	8	10	12	14	16	19
RM-3B	3	4	6	8/(6+2)	9(8+1)	10	12	14(13+1)	14	16	18	21	26	30	32
RM-4B	7	10	24

Features

1.Shell size	00 to size 3(#00,#0,#1,#2,#3)
2. Multi-pole types	2 to 32 contacts
3. Security	push-pull self-latching system
4.contacts (straight or elbow)	Solder ,print or crimp
5.Packing	High packing density for space saving
7.Key options	0°,30°,45°,60°
8. Male contacts and female contacts	brass with gold-plated surface
9. Out shells	brass with chrome nickel-plated surface
10. Insulator	PPS and PEEK
11.Screening	360 angle screening for full EMC shielding.

Raymo Company information

Raymo connector is a professional supplier of high-end connector solutions, company have advanced
prction equipment, testing equipment, high-end CNC lathe and a professional team, dedicated to provide
innovative solutions & high quality prcts for industrial, telecommunication, military, medical and automotivemarkets.

By the end of 2019, the company has successfully passed the ISO9001 (2015) quality system certification,
ROHS certification, CE certification, Reach certification and other authoritative certification.

Application

Transport LIKE Maritime
Defense & Security LIKE Target acquisition
Energy LIKE Remote camera control
Medical LIKE Diagnostic devices
Test & measurement LIKE Sensors
Broadcast LIKE Studios and outside broadcasting
Extreme LIKE Nuclear

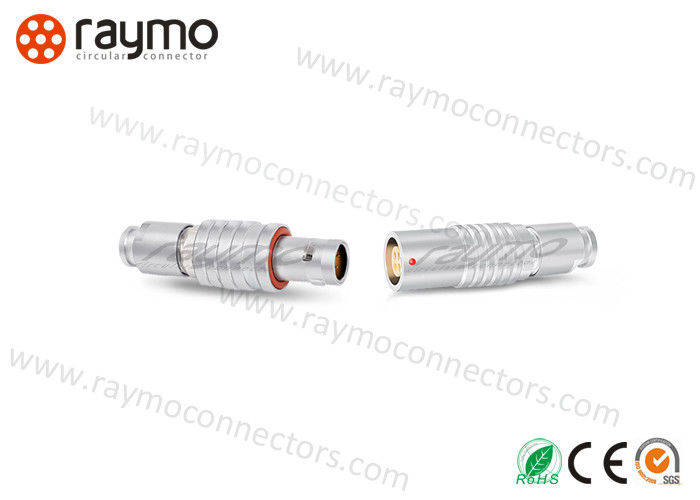

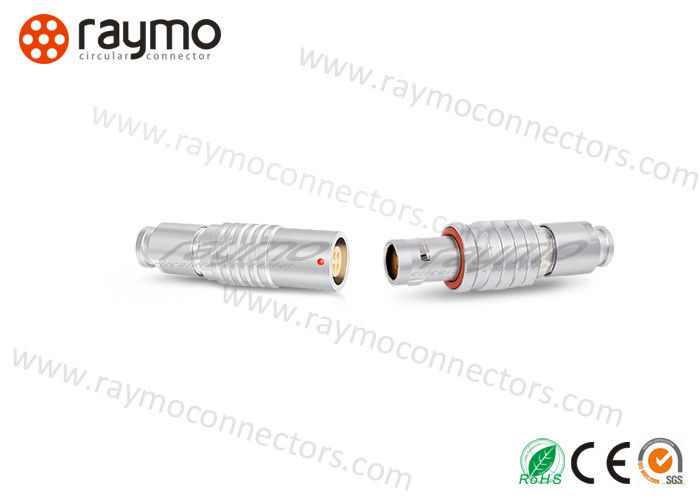

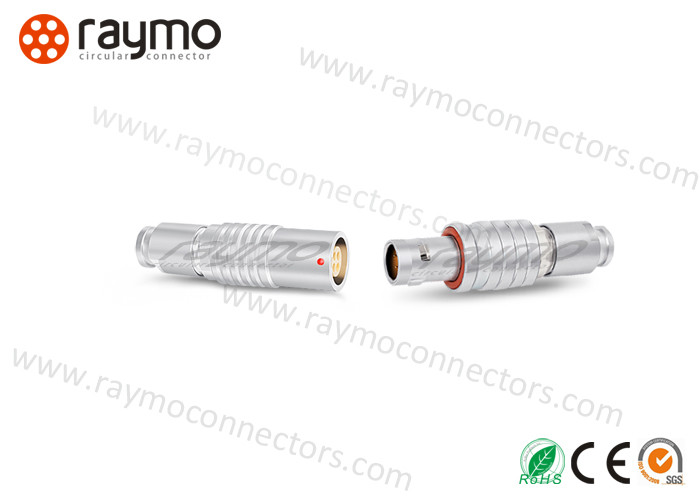

RM-B Series FEG straigt plug, cable to cable connector

Quick Locking Circular Push Pull Connectors With Cable Solder PCB Type 0

Exhibition

2020.11 Electronica Munich, Germany
2019 9.24-9.26 Testing Expo, Shanghai
2018 11.12-11.15 Electronica Munich, Germany
2017 9.11-9.16 NAB Show,Netherlands
2016 4.11-4.15 HK Fair
2015 10.2-10.7 ICEEB, Brasil
2014 10.11-10.15 HK Fair
2014 4.11-4.15 HK Fair

Our Advantage

we can do the designs according to the customers' requirement
we can open customers'own mould as per their reuirement
we can offer you the high quality & reasionalble price
we can offer your a good after-sell service
we have strong professinal design team
promptly delivery. small order is welcome.

FAQ

1. Are your company a professional manufacturer?
Raymo: Yes, we SGS audited manufacturer
2. What is the MOQ?
Raymo: No MOQ limited, depend on customer real needs.
3. Free sample?
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: 3-5 working days for samples, 5-7 working days for mass prction.
5.What is your payment terms?
Raymo: 100% T/T in advance when customer place an order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating, our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!

Etiket:

Menşe yeri:	Shenzhen, Çin
Marka adı:	RAYMO
Sertifika:	ISO:9001-2015, CE, RoHS2.0, SGS, REACH
Model numarası:	FEG.0B.303.Clac52Z

Min sipariş miktarı:	1 Parça/Parça
Fiyat:	negotiable
Ambalaj bilgileri:	Plastik Torba ve Karton
Teslim süresi:	5-7 iş günü
Ödeme koşulları:	Western Union, L/C, D/A, D/P, T/T, MoneyGram
Yetenek temini:	Haftada 5000 parça

Tip:	Dairesel itme çekme konektörü	İletişim Numarası:	2pins, 3pins, 4pins, 5pins, 6pins, 7pins, 9pins
Kabuk boyutu:	0b, diğer kabuk boyutu mevcuttur	Cinsiyet:	Erkek veya dişi lehim kontakları
yalıtkan:	PPS, Peek	IP Sıralaması:	IP54
Vurgulamak:	electronic cable connectors , cable connector plug
