Prct Description
P/N: RM-PKG-1PC-303KS

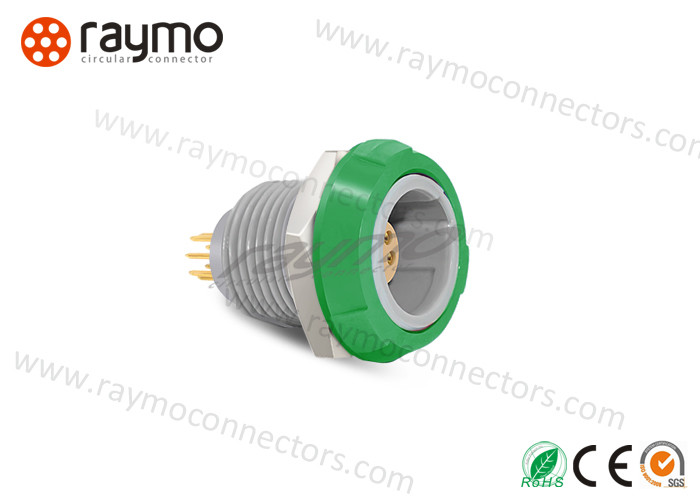

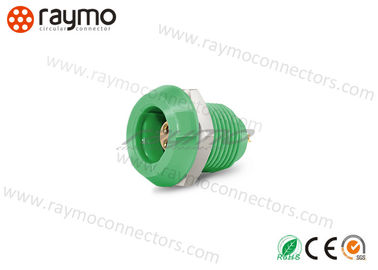

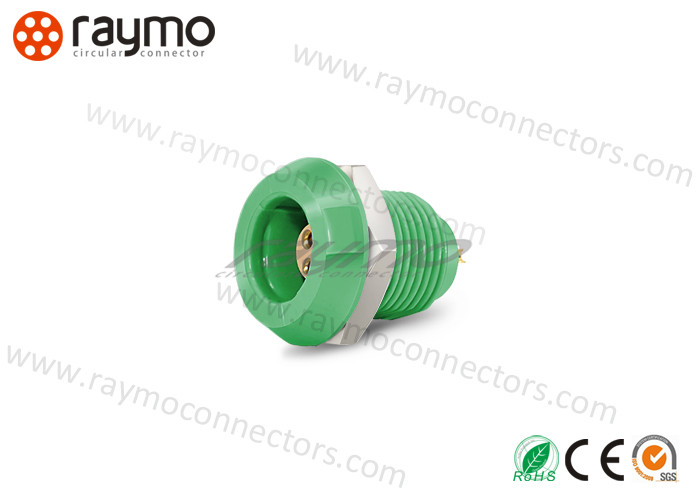

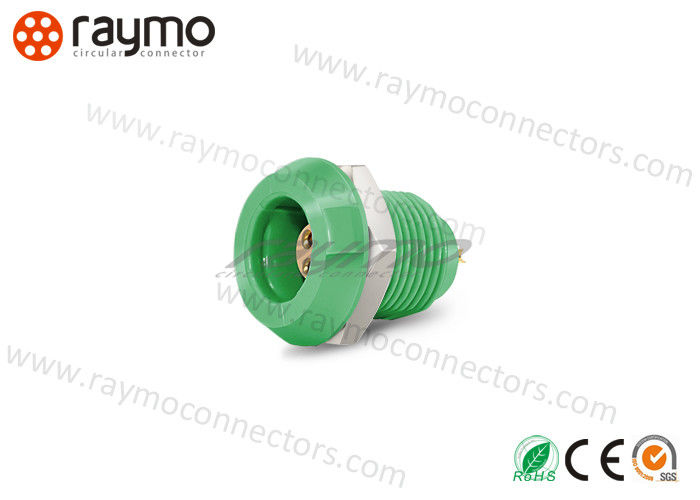

Description: PKG fixed socket, two nuts fixing, 1P series, 1 key (G), 0 degree, 3 pin female contacts in solder type, PPS insulator, outer shell in grey PC, green front nut.
|
|
Contacts No. with solder & PCB type
|
|
|
2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14
|
- Compact structure, small and smart;
- High density arrangement in multi-contact series;
- Push-Pull & self-latching system;
- Colour coding of the plug collet nut and receptacle flange;
- High quality with reasonable prices.
Technical Characteristics
|
Endurance
|
>1000 cycles
|
Salt spray corrosion test
|
>72h
|
|
Humidity
|
Up to 95% at 60℃
|
Protection Index (mated)
|
IP50
|
|
Temperature Range
|
-40°C ~ +150°C
|
Climatical category
|
55/175/21
|
|
Resistance to Vibration
|
10-2000Hz,15g
|
Shielding
|
>75db at 10MHZ
>40db at 1GHZ
|
|
Shock Resistance
|
100g, 6ms
|
Certification
|
CE, RoHS, SGS
ISO9001:2019
|
Photo & Dimensions:
Application
RAYMO's high quality connectors are found in a variety of challenging applications and environmetns including:
Packing & Delivery
PE bag & Carton
Delivery Time:
1~10pcs: 3~5 working days
11~100pcs: 3~5 working days
101~500pcs: 3~5 working days
501~1000pcs: 3~5 working days
About us
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing, Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010.
With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solutions to meet customer's real needs in this fields.
Aimed on offering customer qualified and suitable connectors and cable assemblies, our factory has already designed and developed over 3,000 types of connectors and 1,000 kinds of OEM cable assemblies based on customer's real needs.
Our Service:
1. High Quality: CNC machine, professional engineer, skilful worker, responsible QC ensure our high quality prcts;
2. OEM & ODM: OEM & ODM services are welcome;
3. Sample policy: Free sample & sample order are accepted;
4. Fast delivery: 3~5 working days after receiving payment for normal connectors;
5. Fast Respond: within 24 hours for your inquiry and any other questions;
6. After-sale Service: Follow up your shipment. Provide professional solutions for your questions.
Overseas Exhibitions:
- 2014/04/11-15 HK Fair
- 2014/10/11-15 HK Fair
- 2015/10/2-7 ICEEB, Brazil
- 2016/04/1115 HK Fair
- 2017/09/11-16 NAB Show, Netherlands
- 2018/11/13-16 Electronica 2018, Munich, Germany
FAQ
1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing Circular Connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5. What is your payment terms?
Raymo: 100% T/T prepayment when customer place order .
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application.
