Elbow Signal Printed Circuit Connectors Push Pull Type 1B 7 Pins Broadcast Application

Temel bilgi
Menşe yeri: Shenzhen, Çin
Marka adı: RAYMO
Sertifika: REACH, SGS, RoHS2.0, ISO:9001-2015, CE
Model numarası: Eeg.1b.307.clv
Min sipariş miktarı: 5 adet/adet
Fiyat: negotiable
Ambalaj bilgileri: Plastik Torba ve Karton
Teslim süresi: 5-7wds
Ödeme koşulları: Western Union, L/C, D/A, D/P, T/T
Yetenek temini: 5000 Adet / Hafta
Tip: PCB baskılı devre konnektörü Kabuk boyutu: 0b, 1b, 2b, 3b, 4b
İletişim: 2 ila 32 pim Cinsiyet: Kadın Dirsek PCB Kişileri
yalıtkan: PPS, Peek mevcuttur IP Sıralaması: IP50
Vurgulamak:

circuit board connectors

,

pcb board connector

Lemos B series EEG EGG ECG printed Circuit Connectors, 0B to 4B with 2 to 32 ways elbow signal connector



Company Intrce





Custom Service



Description

RAYMO P/N

Lemo P/N

P/N

RM-EGG-1BC-307-KV

EGG.0B.307.CLV

G20L0C-P02



Shell Size and Contact No.



Shell size Contacts no. ( Both with Solder & PCB type )
00 2 3 4
0B 2 3 4 5 6 7 9
1B 2 3 4 5 6 7 8 10 12 14 16
2B 2 3 4 5 6 7 8 10 12 14 16 19
3B 3 4 6 8/(6+2) 9(8+1) 10 12 14(13+1) 14 16 18 21 26 30 32
4B 7 10 24

Technical Characteristics
Temperature Range - 65° C, +200° C Resistance to vibrations 15 g [10 Hz - 2000 Hz]
Shell Material Brass with chrome plated Humidity up to 95% at 60° C/140F
Shock Resistance 100 g [ 6 ms] Salt spray corrosion test >144hr
Climatical Category 50/175/21 Shielding (min) > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating IP50 Endurance(shell) 5000 mating cycles
Applications

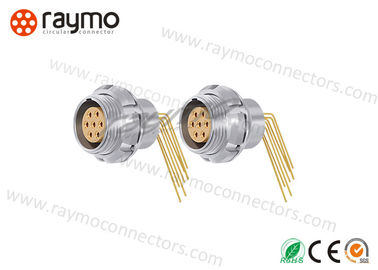

Pictures and Dimension

Elbow Signal Printed Circuit Connectors Push Pull Type 1B 7 Pins Broadcast Application 0



Why choose us
  • 8 years focus on connectors
  • Save your costs at least 50%
  • professional teams in R&D,manufacture,quality testing and export sales to make sure your connectors perfect and have relatively low prices
  • customized your own connectors according to your requirement
  • Factory supplier,provide fast delivery and perfect after-sales service you can purchase without scruple.
  • Help customers to make model selection : Just e-mail us and give the prtion information
FAQ
1.Can I order a small list ?
Raymo:Of course, you can.
2.What quote do you offer?
Raymo:FOB , CIF and others ways according the your needs.
3.How transport?
Raymo:Sea Freight, Air Freight and others Express Delivery ways for you.
4.What is the quality of your prcts guarantee?
We have passed ISO9001:2015 Quality Management System Certification, CQM Quality Management System Certification and IQNet Quality Management System Certification, If the quality doesn't accord the standard, you can exchange the goods for free.
5.Do you have after-sales service?
Raymo:Certainly,you can contact us at any time.
