Name: Industrial Sealed Electrical Connectors Quick Fit Easy Mountable Accept OEM ODM
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: Hma.1b.305.cln
Price: 12.30 USD
Availability: InStock

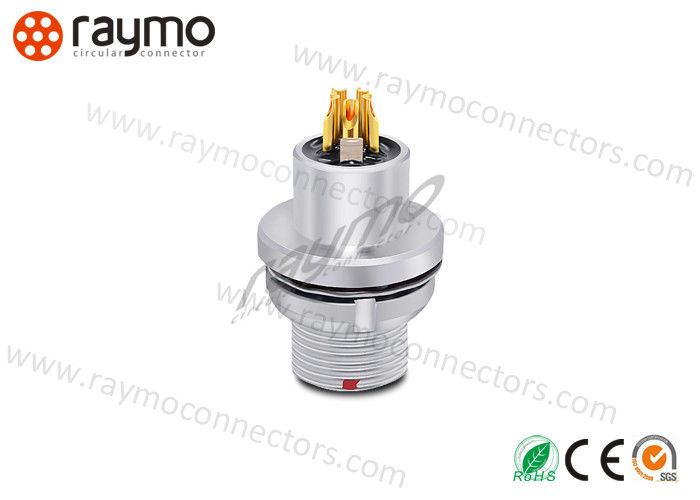

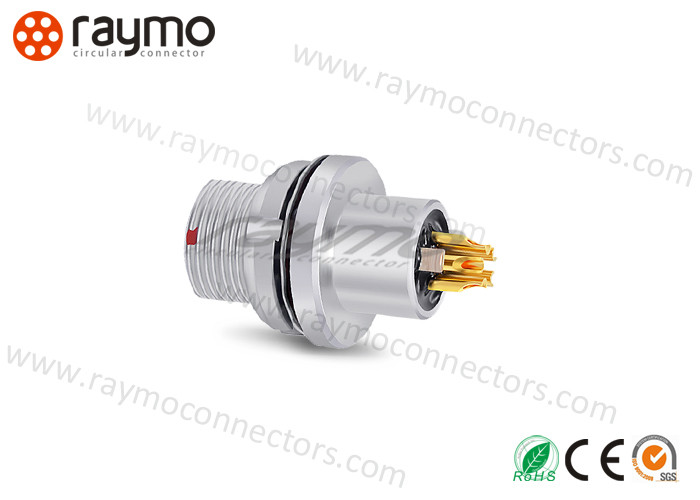

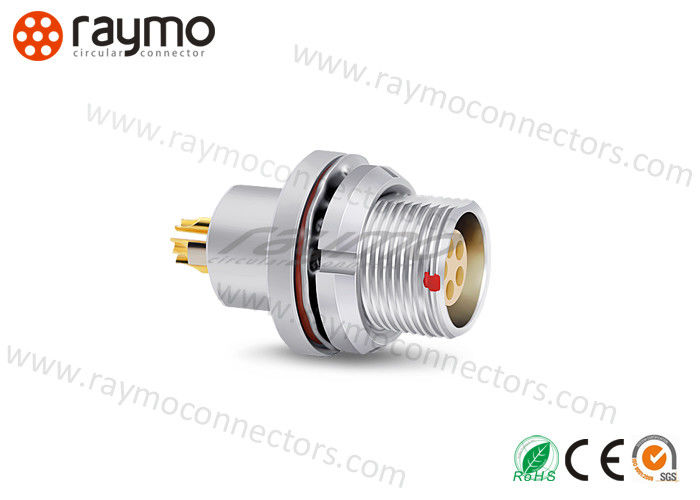

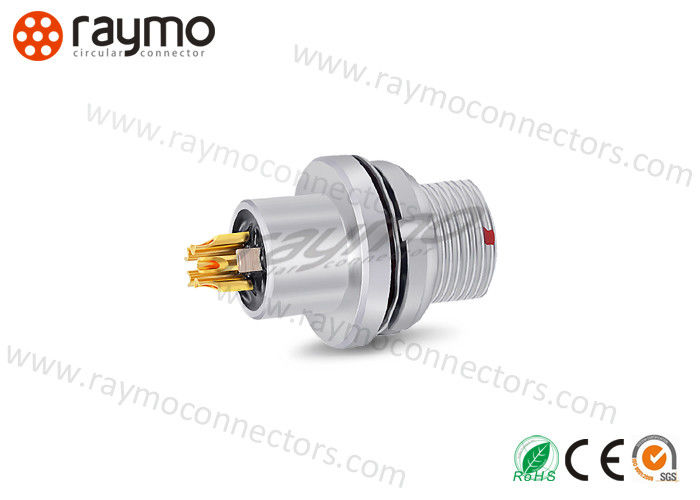

B series panel mount receptacle, HMG HMA sealed printed circuit automation connector, 0B 1B 2B HMA.1B.305.CLN

Description

HMGFixed socket with earthing tag, nut fixing, key (G) or keys (A…M), watertight or vacuumtight
(back panel mounting)
1B 5 pins straight PCB contacts
RAYMO P/N Lemo P/N

RM-HMG-1BC-305-KP HMG.1B.305.CLN

Shell Size and Contact No.

Shell size	Contacts no. ( Both with Solder & PCB type )
Shell size	Contacts no. ( Both with Solder & PCB type )
00	2	3	4
0B	2	3	4	5	6	7	9
1B	2	3	4	5	6	7	8	10	12	14	16
2B	2	3	4	5	6	7	8	10	12	14	16	19
3B	3	4	6	8/(6+2)	9(8+1)	10	12	14(13+1)	14	16	18	21	26	30	32
4B	7	10	24

Technical Characteristics

Temperature Range	- 65° C, +200° C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shell Material	Brass with chrome plated	Humidity	up to 95% at 60° C/140F
Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>144hr
Climatical Category	50/175/21	Shielding (min)	> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating	IP50	Endurance(shell)	5000 mating cycles

Company Intrce

As manufacturer located in Shenzhen, focusing on manufacturing connectors and cable assemblies serive more than 150 countries since 2010.
Raymo Connectors is committed to working closely with its customers to equip their application with the most appropriate connector and cable system.
Our prct range comprises over 3,000 standard items and we are always prepared to develop customized solutions for specific requests.

Custom Service

From cable assemblies through to custom deep sea connectors and box builds, Raymo is able to provide bespoke services and solutions that are uniquely tailored to customers’ individual needs, giving you the very best results when we take an original concept from design through to manufacture.
Providing bespoke services and solutionsthat are uniquely tailored to fit your individual needs.

Applications

Broadcast like HD and SD cameras
Instrumentation like Test & measurement
Medical like Cardiac assist devices
Transport like Maritime
Energy like Petrol & gas
Defense & Security like Surveillance equipment

Pictures and Dimension

Industrial Sealed Electrical Connectors Quick Fit Easy Mountable Accept OEM ODM 0

Why choose us

8 years focus on connectors
Save your costs at least 50%
professional teams in R&D,manufacture,quality testing and export sales to make sure your connectors perfect and have relatively low prices
customized your own connectors according to your requirement
Factory supplier,provide fast delivery and perfect after-sales service you can purchase without scruple.
Help customers to make model selection : Just e-mail us and give the prtion information

FAQ

1.Can I order a small list ?

Raymo:Of course, you can.

2.What quote do you offer?

Raymo:FOB , CIF and others ways according the your needs.

3.How transport?

Raymo:Sea Freight, Air Freight and others Express Delivery ways for you.

4.What is the quality of your prcts guarantee?

We have passed ISO9001:2015 Quality Management System Certification, CQM Quality Management System Certification and IQNet Quality Management System Certification, If the quality doesn't accord the standard, you can exchange the goods for free.

5.Do you have after-sales service?

Raymo:Certainly,you can contact us at any time.

Etiket:

Menşe yeri:	Shenzhen, Çin
Marka adı:	RAYMO
Sertifika:	REACH, SGS, RoHS2.0, ISO:9001-2015, CE
Model numarası:	Hma.1b.305.cln

Min sipariş miktarı:	5 adet/adet
Fiyat:	negotiable
Ambalaj bilgileri:	Plastik Torba ve Karton
Teslim süresi:	5-7wds
Ödeme koşulları:	Western Union, L/C, D/A, D/P, T/T
Yetenek temini:	5000 Adet / Hafta

Tip:	Basılı devre su geçirmez konektör	Kabuk boyutu:	0B ila 4B
İletişim:	2. 3. 4. ........ 32 yol	Cinsiyet:	Düz PCB Kişileri
yalıtkan:	PPS	IP Sıralaması:	IP54
Vurgulamak:	circuit board connectors , right angle pcb connector
