Ana sayfa ÜrünlerDişli elektrik konnektörüRAYMO Threaded Electrical Connector Screw Quick Shielded Well Sealing Reliable

RAYMO Threaded Electrical Connector Screw Quick Shielded Well Sealing Reliable

RAYMO Threaded Electrical Connector Screw Quick Shielded Well Sealing Reliable
RAYMO Threaded Electrical Connector Screw Quick Shielded Well Sealing Reliable RAYMO Threaded Electrical Connector Screw Quick Shielded Well Sealing Reliable RAYMO Threaded Electrical Connector Screw Quick Shielded Well Sealing Reliable RAYMO Threaded Electrical Connector Screw Quick Shielded Well Sealing Reliable
Temel bilgi
Menşe yeri: Shenzhen, Çin
Marka adı: RAYMO
Sertifika: SGS, RoHS2.0, ISO:9001-2015, CE, REACH
Model numarası: Rm-pgg.m16.a03js40z
Min sipariş miktarı: 5 adet/adet
Fiyat: negotiable
Ambalaj bilgileri: Plastik Torba ve Karton
Teslim süresi: 5-7wds
Ödeme koşulları: Western Union, L/C, D/A, D/P, T/T
Yetenek temini: 5000 Adet / Hafta
Şimdi başvurun
Tip: Kablo montaj fişi Kabuk boyutu: M16 678 Serisi
İletişim: 3, 4, 5, 6, 7, 8 12pin Cinsiyet: erkek teması
yalıtkan: PPS IP Sıralaması: IP40
Vurgulamak:

threaded wire connectors

,

metal circular connector

RAYMO MINIATURE BAYONET LOCKING CONNECTOR 678 SERIES CABLE MOUNT PLUG FOR COVID-19ULTROSONIC WELDING DEVIVE AGAIN



RAYMO Factory Intrce





Description and part no list
Technical Characteristics



Materials 　
Shell body PA66
Insulating body PBT
Contact pin CuZn, silver-plated and flash goldplated (3-8 poles)
Sleeve PC
Bend protection sleeve TPE
Screw steel Nickel-plated





RAYMO Part no ordering:



Contacts Binder Ordering-No. Raymo Part No. Cable outlet
2 99 0601 00 02 RM-PAG.M16.A02JS40Z 4-6mm
3 99 0605 00 03 RM-PAG.M16.A03JS40Z 4-6mm
4 99 0609 00 04 RM-PAG.M16.A04JS40Z 4-6mm
5 99 0613 00 05 RM-PAG.M16.A05JS40Z 4-6mm
6 99 0617 00 06 RM-PAG.M16.A06JS40Z 4-6mm
7 99 0621 00 07 RM-PAG.M16.A07JS40Z 4-6mm
7 99 0681 00 07 RM-PAG.M16.A07JS40Z 4-6mm
8 99 0645 00 08 RM-PAG.M16.A08JS40Z 4-6mm
12 99 0649 00 12 RM-PAG.M16.A12JS40Z 4-6mm
14 99 0653 00 14 (need MOQ=20000pcs) RM-PAG.M16.A14JS40Z 4-6mm
16 99 0657 00 16 (need MOQ=20000pcs) RM-PAG.M16.A16JS40Z 4-6mm
9 99 0665 00 19 (need MOQ=20000pcs) RM-PAG.M16.A19JS40Z 4-6mm
24 99 0669 02 24 (need MOQ=20000pcs) RM-PAG.M16.A24JS70Z only for 6-8mm





Applications



  1. Medical
  2. Test & measurement
  3. Transport
  4. Defense & Security
  5. Broadcast
  6. Energy

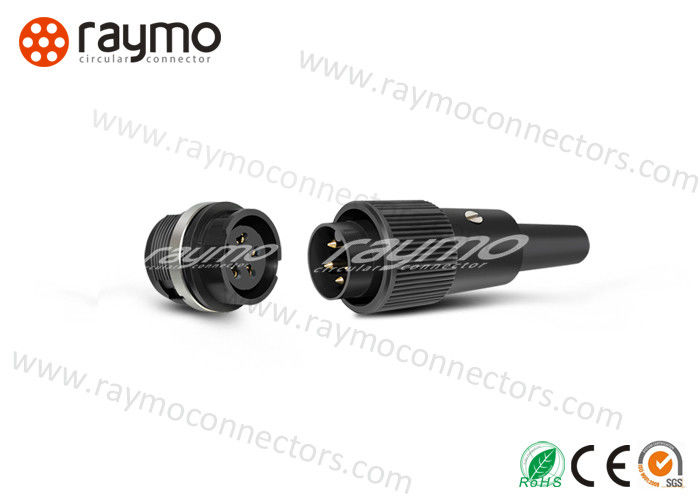

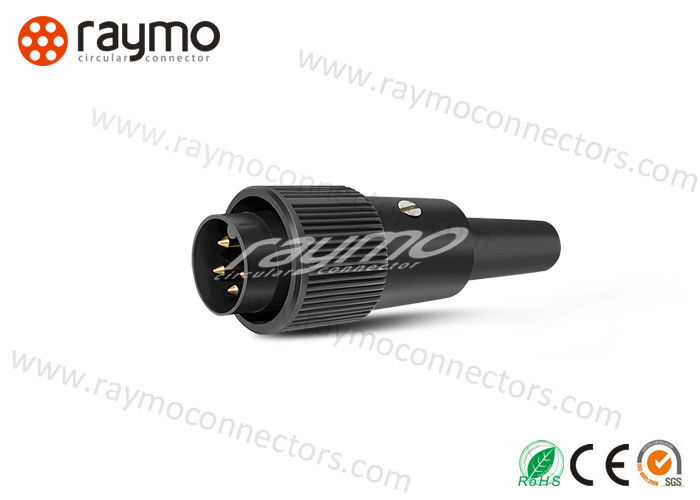

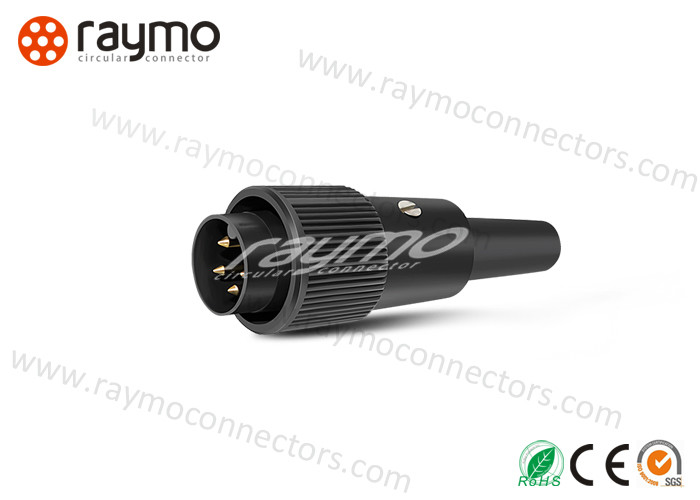

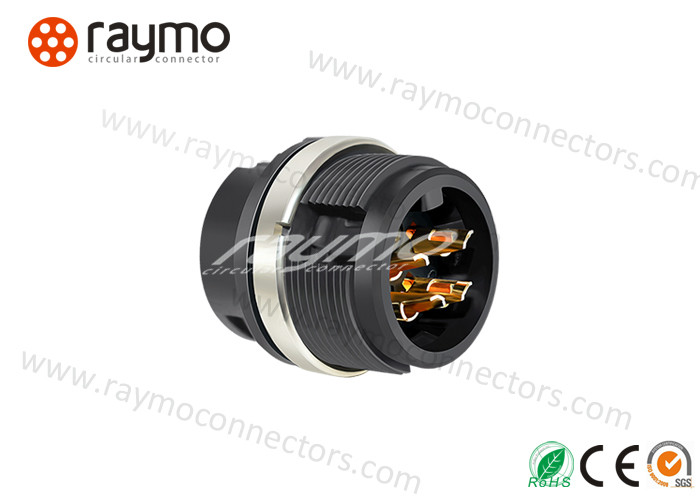

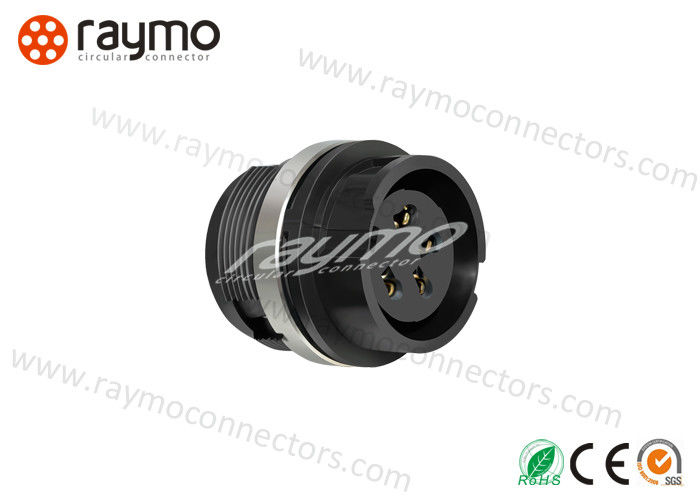

Pictures and Dimension

RAYMO Threaded Electrical Connector Screw Quick Shielded Well Sealing Reliable 0



Why choose us
  • 8 years focus on connectors
  • Save your costs at least 50%
  • professional teams in R&D,manufacture,quality testing and export sales to make sure your connectors perfect and have relatively low prices
  • customized your own connectors according to your requirement
  • Factory supplier,provide fast delivery and perfect after-sales service you can purchase without scruple.
  • Help customers to make model selection : Just e-mail us and give the prtion information
FAQ
  1. Can I order a small list ?, yes, you can, 1 piece is ok.
  2. What quote do you offer? EXW, FOB, CIF  and others ways according the your needs.
  3. How transport?  Sea Freight, Air Freight and others Express Delivery ways for you.
  4. What is the quality of your prcts guarantee? We have passed ISO9001:2015 Quality Management System Certification, CQM Quality Management System Certification and IQNet Quality Management System Certification, If the quality doesn't accord the standard, you can exchange the goods for free.
  5. Do you have after-sales service? Certainly,you can contact us at any time.
