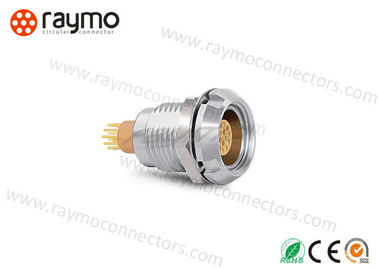

Raymo B Series Miniature Circular Connectors Optimized Straight 2 Ways Thread Connection

Raymo B Series Miniature Circular Connectors Optimized Straight 2 Ways Thread Connection
Raymo B Series Miniature Circular Connectors Optimized Straight 2 Ways Thread Connection Raymo B Series Miniature Circular Connectors Optimized Straight 2 Ways Thread Connection
Temel bilgi
Menşe yeri: Shenzhen, Çin
Marka adı: RAYMO
Sertifika: REACH, SGS, RoHS2.0, ISO:9001-2015, CE
Model numarası: Ecg.1b.302.cln
Min sipariş miktarı: 5 adet/adet
Fiyat: negotiable
Ambalaj bilgileri: Plastik Torba ve Karton
Teslim süresi: 5-7wds
Ödeme koşulları: Western Union, L/C, D/A, D/P, T/T
Yetenek temini: 5000 Adet / Hafta
Şimdi başvurun
Tip: Minyatür dairesel konektör İletişim Numarası.: 2 yollu, 2,3,4,5,6, 7, 9pins de mevcut
yalıtkan: PPS/PEEK IP Sıralaması: IP50
Dayanıklılık: 5000 kez itme çekme Bağlayıcı tipi: Kaynak/PCB Düz ve Dirsek Kontakları
Vurgulamak:

mini electrical connectors

,

miniature electrical connectors

2 Ways Miniature Circular Connector, Raymo B Series Industry Camera Push Pull Connector ECG.1B.302.CLN



Company intrce



Descriotipn of goods



RAYMO P/N

Lemo P/N

P/N

RM-ECG-1BC-302-KP

ECG.1B.302.CLN

G51L0C-P02



Shell Size and Contacts



hell size Contacts no. ( Both with Solder & PCB type )
00 2 3 4 　 　 　 　 　 　 　 　 　 　 　 　
0B 2 3 4 5 6 7 9 　 　 　 　 　 　 　 　
1B 2 3 4 5 6 7 8 10 12 14 16 　 　 　 　
2B 2 3 4 5 6 7 8 10 12 14 16 19 　 　 　
3B 3 4 6 8/(6+2) 9(8+1) 10 12 14(13+1) 14 16 18 21 26 30 32
4B 7 10 24 　 　 　 　 　 　 　 　 　 　 　 　



Technical Characteristics

Technical Characteristics

Temperature Range

- 40° C, +125° C

Resistance to vibrations

15 g [10 Hz - 2000 Hz]

Shell Material

Brass with chrome plated

Humidity

up to 95% at 60° C/140F

Shock Resistance

100 g [ 6 ms]

Salt spray corrosion test

>144hr

Climatical Category

50/175/21

Shielding (min)

> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]

IP Rating

IP50

Endurance(shell)

5000 mating cycles





Connectors challenging applications and environments including
  • Automotive
  • Audio-video
  • Aviation
  • Communications Industrial Control
  • Information Systems
  • Machines, Medical, Military, Test and Measurement
  • Data Acquisition
Why choose us
  • 100% compatible lemo connector
  • Help you save at least 50% cost
  • Cable assembly offer,help you save prction time



FAQ


1.Can I order a small list ?
Raymo:Of course, you can.
2.What quote do you offer?
Raymo:FOB , CIF and others ways according the your needs.
3.How transport?
Raymo:Sea Freight, Air Freight and others Express Delivery ways for you.
4.What is the quality of your prcts guarantee?
We have passed ISO9001:2015 Quality Management System Certification, CQM Quality Management System Certification and IQNet Quality Management System Certification, If the quality doesn't accord the standard, you can exchange the goods for free.
5.Do you have after-sales service?
Raymo:Certainly,you can contact us at any time.

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
