Name: Audio Vedio FGG PHG 0B 1B 2B Circular Push Pull Connectors
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: FGG PHG 0B 1B 2B
Price: 11.10 USD
Availability: InStock

Audio Vedio FGG PHG 0B 1B 2B Circular Push Pull Connectors

Temel bilgi

Menşe yeri:	Shenzhen, Çin
Marka adı:	RAYMO
Sertifika:	RoHS2.0, ISO:9001-2015, CE , SGS, REACH
Model numarası:	FGG PHG 0B 1B 2B

Min sipariş miktarı:	1 parça
Fiyat:	negotiable
Ambalaj bilgileri:	100 adet/ctn
Teslim süresi:	5-7 iş günü
Ödeme koşulları:	Western Union, T/T, D/P, D/A, L/C, MoneyGram
Yetenek temini:	Haftada 5000 adet

Şimdi başvurun

PRCT Adı:

Push Çekme konnektörü

Tip:

Fiş ve Ücretsiz Soket

Kabuk boyutu:

0B 1B 2B Serisi

İletişim Numarası.:

2,3,4,5,6,7,8,9,10,12,14,16,19,21,26,30 pim

terminal:

Lehim

IP Sıralaması:

IP50

Vurgulamak:

2B Circular Push Pull Connectors

PHG Circular Push Pull Connectors

FGG Metal Circular Connectors

metal housing audio vedio FGG PHG 0B 1B 2B Circular Push Pull Connectors

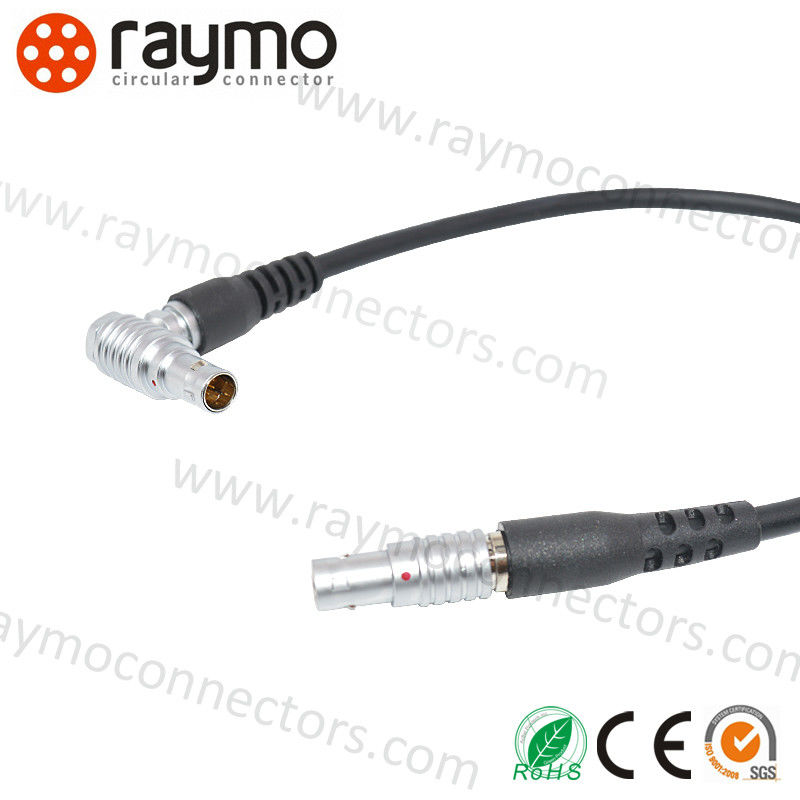

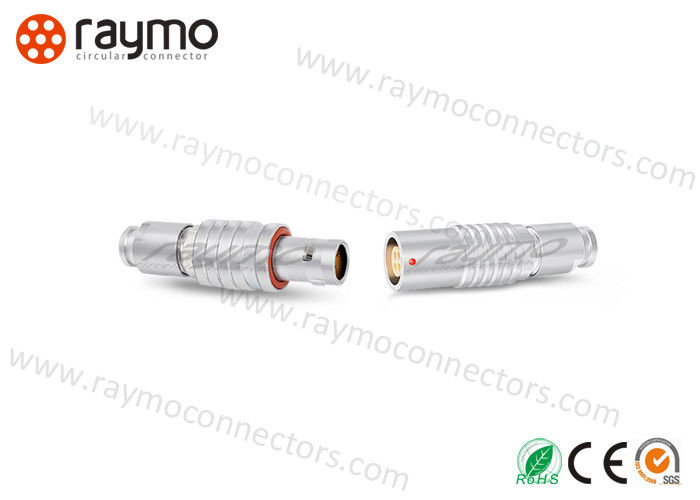

PHG.2B.319.CLLD72Z = RM-PHG-2BC-319-KS72Z .Free socket with key(G) and cable collet, 2B series, multipole 19 contacts, outer shell in natural chrome-plated brass, PPS insulator, female solder contacts, collet for 6.2-7.2mm diameter cable, nut with fitting a bend relief, IP50.

With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solution to meet customer's real needs in his field.

We are specilized in many kinds of alternative connector such as:

1/ B, K,S, P series

2/ core series 102, 103, 1031, 104, 105

3/ Hirose HR10A series

4/ Binder M16 680, 678, 598, 423 series

5/ OEM series

6/ Cable assemblies

RM-B series metal circular push pull connector with below features:

Secure high performance push-pull self-locking system
High pin density contributing to equipment miniaturization
Alignment Key and Polarized Keying System to avoid cross-interface
360° EMC shielding
Robust and shock resistant designs
Functional in a wide temperature range from -50°C to +250°C
Available solder, PCB and right angle PCB contact

Technical Characteristics
Temperature Range	-55°C, +250°C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>96hrs
Climatical Category	50/175/21	Humidity	Up to 95% at 60°C
IP Rating	IP50	Certifications	ISO9001/ CE/ ROHS2.0/ SGS

Applications

RAYMO connectors have been widely used in the areas of telecommunication, electronics, medical equipments, aviation, audio-video, petroleum, motor and power industries, electrical signal connection, IC control systems, test and measurement instruments, ect.

Audio Vedio FGG PHG 0B 1B 2B Circular Push Pull Connectors 1

RAYMO Prction line

Raymo factory has 4 lines for process connector and cable assembly.
Each step of processing has the sop for referenece.
ALL the connector components including the shell body, contacts, insulation is make by ourselves, except the plating.
We have 5 pcs Horizontal machining lathe to support our order to assure the fast delivery.
Each prcts can be delivery after QC quality testing.
