Name: D-Tap Male To 0B ECG Female Push Pull Connector Hub Adapter Splitter
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: EKG 2 PIN DTAP Erkek
Price: 16.00 USD
Availability: InStock

D-Tap Male To 0B ECG Female Push Pull Connector Hub Adapter Splitter

Temel bilgi

Menşe yeri:	Shenzhen, Çin
Marka adı:	RAYMO
Sertifika:	SGS, REACH, RoHS2.0, ISO:9001-2015, CE
Model numarası:	EKG 2 PIN DTAP Erkek

Min sipariş miktarı:	5 adet/adet
Fiyat:	12USD~20USD/PCS
Ambalaj bilgileri:	Plastik Torba ve Karton
Teslim süresi:	5-7wds
Ödeme koşulları:	Western Union, L/C, D/A, D/P, T/T
Yetenek temini:	5000 Adet / Hafta

Şimdi başvurun

Tanım:

Dairesel İtme Çekme Konnektör Kablosu Montajı

Kabuk boyutu:

0b EKG 3 PIN

Kablo uzunluğu:

0,5 metre (müşteri gerçek ihtiyaçlarına göre)

Kabuk rengi:

Doğal krom kaplama pirinç

IP Sıralaması:

IP50

başvuru:

Yüksek hızlı kameralar

Yaşam döngüsü:

5000 kez itme çekme

Sertifika:

CE/ROHS/Reach/ISO9001/SGS

Vurgulamak:

IP50 Female Push Pull Connector

0B ECG Female Push Pull Connector

Hub Adapter Splitter Circular Connectors

D-Tap Male To 0b 2 Pin Female Push Pull Connector Hub Adapter Splitter For Arri/Red/

Sony Camera Power Supply

Parts Description

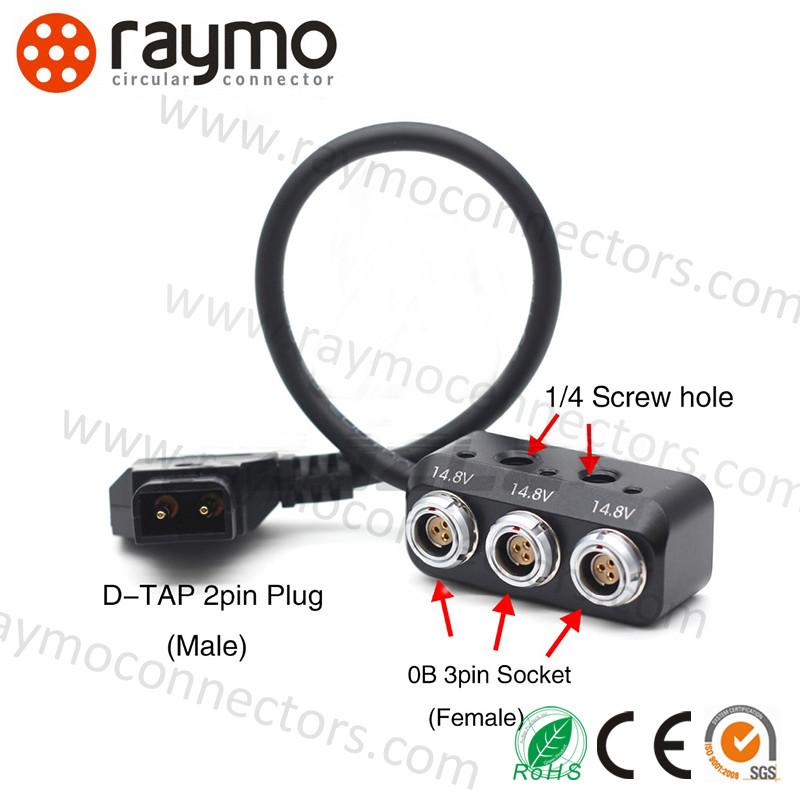

RM-ECG-0BC-303-KS + D TAP MALE

ECG panel circular push pull connector to D TAP male with three way splitter. Cable length is according

customer real needs, 0.5m, 1m, 2m. We can make all types of cables as per customers' request.

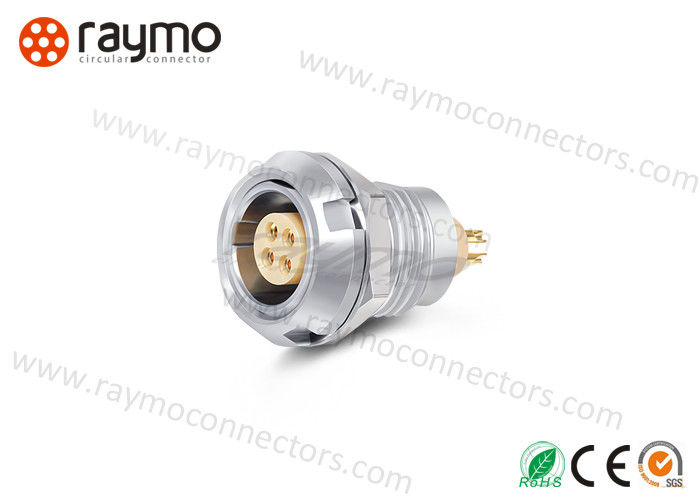

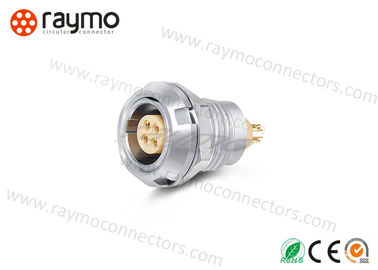

Main Features of ECG panle circular connector

1. Push pull locking metal connector, cable to cable connector, free socket, inline connector

2. can be 100% compatible with original connector

3. can be with different degree , such us 30, 45, 60, 90, 135

4. can plated with white or black chrome

5. 360 angle screening for full EMC shielding

6. ISO:9001-2015 CE RoHS2.0 SGS REACH

Technical Characteristics of Metal Circuar push pull connector

Temperature Range	- 40° C, +125° C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shell Material	Brass with chrome plated	Humidity	up to 95% at 60° C/140F
Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>96hr
Climatical Category	50/175/21	Shielding (min)	> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating	IP68	Endurance(shell)	5000 mating cycles

RAYMO Circular Connector :

SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED has been specializing in prcing Waterproof

Connector Metal Fast Lock for many years, we providing high quality waterproof metal connector Prcts.

Quality is our priority. Raymo always attach great importance to quality controlling from the very beginning to

the very end. Our factory has gained ISO9001, If you are searching for waterproof connector metal fast lock,

please feel free to contact us.

RFQ:

Q1. Can I have a sample ?

Yes, we welcome sample order to test and check quality. Some samples are free, and some samples should be

paid in advance and the cost will be refund after further order.

Q2. What about the prction lead time?

We have stock, fast delivery below 5,000 pieces.

Q3. How do you ship the goods and how long does it take to arrive?

We often ship by DHL, UPS, FedEx,TNT,SF or EMS. It usually takes 3-5 days to arrive.

Q4. Is it OEM available?

Yes. We have rich experience and good ability to put your design and idea into real prct, normally it take

about 20 to 30 days for new prct from mold design to final prction.
