Ana sayfa Ürünler2PM Konnektör2PM Connector 14-45mm Shell Size 5-40A Current Solder Termination

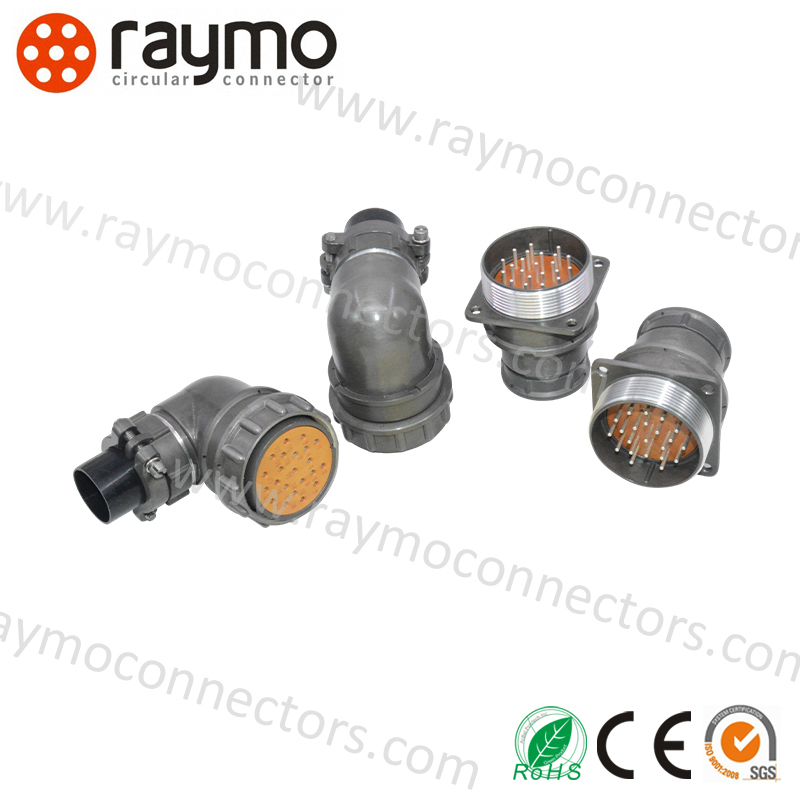

2PM Connector 14-45mm Shell Size 5-40A Current Solder Termination

2PM Connector 14-45mm Shell Size 5-40A Current Solder Termination
2PM Connector 14-45mm Shell Size 5-40A Current Solder Termination
2PM Connector 14-45mm Shell Size 5-40A Current Solder Termination 2PM Connector 14-45mm Shell Size 5-40A Current Solder Termination
Temel bilgi
Marka adı: Raymo
Sertifika: CE/RoHs/REACH/ISO9001:2015
Model Number: RM-2PM Series
Minimum Order Quantity: 5
Fiyat: 1-9.99 USD
Packaging Details: CTN
Delivery Time: 2-3 WEEKS
Ödeme koşulları: T/T, D/A, D/P, Western Union, Moneygram
Supply Ability: 5000PCS Per Month
Şimdi başvurun
Kabuk boyutu: 14/18/22/24/27/30/33/36/39/42/45 Kabuk malzemesi: Alüminyum alaşımı
Özellikler: Yüksek dayanıklılık, kurulumu kolay Çalışma akımı: 5-40A
Fesih tarzı: Lehim Bağlantı yöntemi: İplik Bağlantısı
İletişim: 4/7/8/10/19/20/22/24/32/45/50 pin Bağlayıcı Serisi: 14:00 2 piksel konektörler
Vurgulamak:

2PM connector 14-45mm shell size

,

2PM connector 5-40A current rating

,

2PM connector solder termination

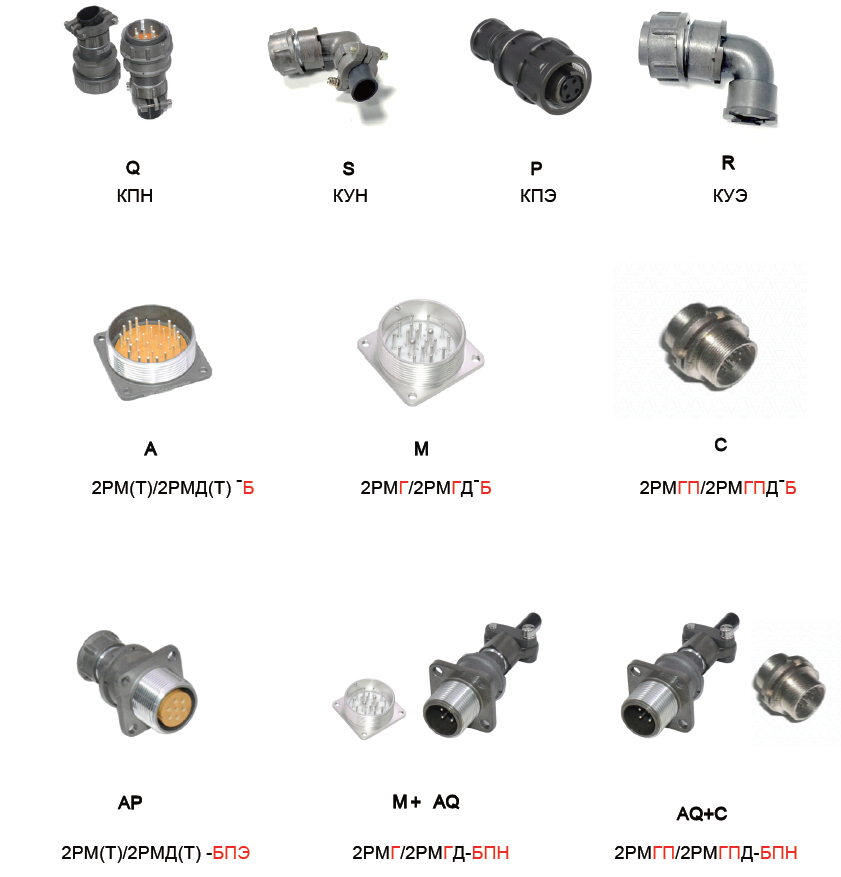

Russian 2PM Series Connector - Customizable Solder Replacement for Multiple Shell Sizes
Product Overview
The 2PM Connector is a high-quality electrical circular connector designed for various applications. Featuring a through-hole mounting style and bakelite insulator, it provides reliable electrical insulation and protection with a voltage rating of 250V.
Key Specifications
Attribute Value
Shell Size 14/18/22/24/27/30/33/36/39/42/45
Shell Material Aluminum Alloy
Working Current 5-40A
Termination Style Solder
Connection Method Thread Connection
Contacts 4/7/8/10/19/20/22/24/32/45/50 Pin
Technical Features
  • High Durability: Designed to withstand tough conditions and frequent use
  • Easy Installation: Through-hole mounting style simplifies setup
  • Reliable Materials: Bakelite insulator with copper contacts (silver/gold plated)
  • Wide Temperature Range: Operates from -60°C to 200°C
  • Long Service Life: 500 mating cycles
Technical Parameters
Parameter Value
Voltage Rating 250V
Material Metal
Mounting Style Through Hole
Insulator Bakelite
Temperature Range -60°C to 200°C
Applications
The 2PM Series connector is ideal for various industrial applications including:
  • Electronics manufacturing and circuit board applications
  • Automotive electronics and onboard systems
  • Industrial machinery and equipment
  • Equipment maintenance and connector replacement
Certifications & Compliance
CE/RoHS/REACH/ISO9001:2015 certified for quality assurance and environmental compliance.
Support & Services
Our technical support team provides comprehensive assistance for product inquiries, troubleshooting, and maintenance. Regular updates and expert guidance ensure optimal performance of your 2PM connectors.

Etiket:

Bakelit 2РМТ18 Rusya Konnektörü

4Pin 2РМТ18 Rusya Konnektörü

2PM18Serisi 2РМТ18 Rusya Konnektörü
