Name: Waterproof Circular Push Pull Connector 00 Series NIM - CAMAC CD / N 549 Type
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: Rm-epe.00.250.ntn
Price: 12.30 USD
Availability: InStock

Waterproof Circular Push Pull Connector 00 Series NIM - CAMAC CD / N 549 Type

Temel bilgi

Menşe yeri:	Shenzhen, Çin
Marka adı:	RAYMO
Sertifika:	ISO:9001-2015
Model numarası:	Rm-epe.00.250.ntn

Min sipariş miktarı:	1 Parça/Parça
Fiyat:	negotiable
Ambalaj bilgileri:	Plastik Torba ve Karton
Teslim süresi:	5-7 iş günü
Ödeme koşulları:	T/T, Western Union, D/A, D/P, L/C, MoneyGram
Yetenek temini:	5000 Adet / Hafta

Şimdi başvurun

PRCT Adı:

00 Serisi koaksiyel konektör

Model:

Basılı devre için iki fındık ile EPE sabit soket

Kabuk boyutu:

İletişim Numarası.:

koaksiyel

yalıtkan:

PPS, Peek

Cinsiyet:

erkek kadın

Kabuk rengi:

Gümüş krom siyah krom

IP Sıralaması:

IP50

İletişim Türü:

Basılı devre PCB tipi

Kablo monte edilmiş olsun ya da değil:

Evet

Vurgulamak:

pcb contacts connector

cable elbow connector

Prct Description

Circular push pull connector 00 Series NIM-CAMAC CD/N 549 type coaxial connector fixed socket with two nuts, for printed Circuit

Part No.:	EPE.00.250.NTN / RM-EPE-00-250KS
Prct Description:	00 Series NIM-CAMAC CD/N 549 type circular push pull connector coaxial connector fixed socket with two nuts, for printed Circuit

Half-moon type Push pull locking metal connector S-series connector, cable to cable connector, free socket, inline connector

Main Futures
1	Half-moon type Secure high performance push-pull Self-locking system
2	can be 100% compatible with original Lemo connector
3	Half-moon locking, coaxial locking
4	can plated with white or black chrome
5	Available solder and PCB or right angle PCB contact.
6	360° EMC shield
7	Certificate:ISO:9001-2015, CE ,RoHS2.0, SGS, Reach

Technical Characteristics
Temperature Range	- 65° C, +200° C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shell Material	Brass with chrome plated	Humidity	up to 95% at 60° C/140F
Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>96hr
Climatical Category	50/175/21	Shielding (min)	> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating	IP 50	Endurance(shell)	≥5000 mating cycles

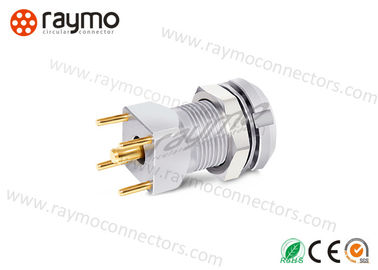

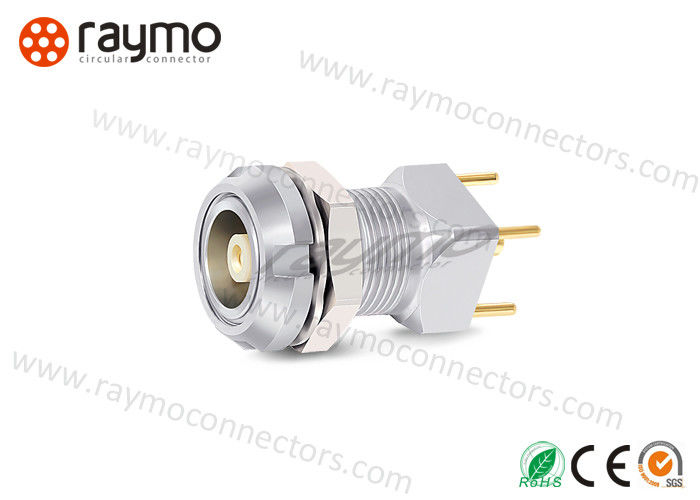

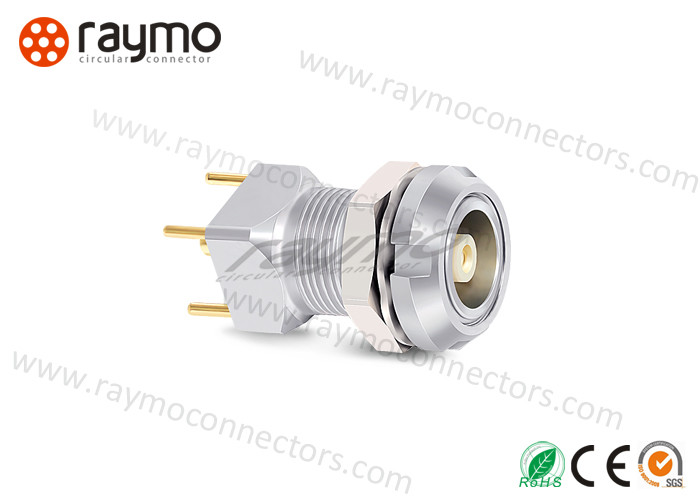

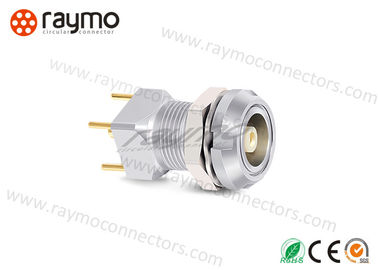

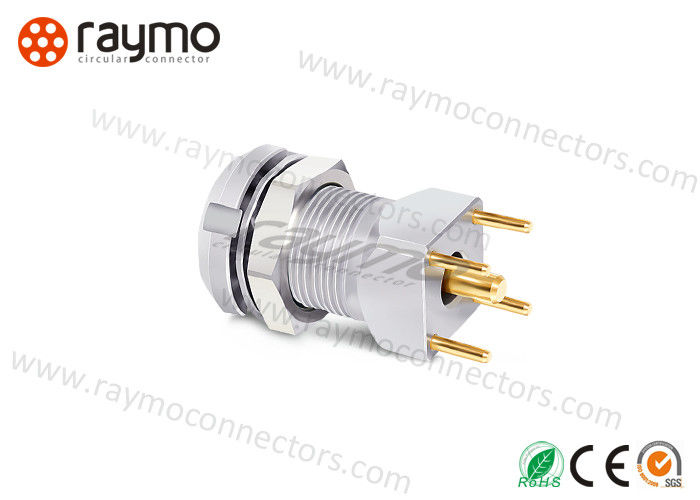

RM-S FFA Cable Plug Prcts Photo:

Waterproof Circular Push Pull Connector 00 Series NIM - CAMAC CD / N 549 Type 0

Our Company

RAYMO ELECTRONICS TECHNOLOGY LTD , established in 2010, located in shenzhen,China

Expert in making high quality push pull connector & cable assemble.
Promotion items with more than 10 years’ experience!
Our goal is to provide customers with the best service possible and to prce excellent quality.
Brand identification prcts will meet or exceed your expectations.
All items coming with certification and we have excellent team offering best connector solution for your application.

RAYMO's high quality connectors are found in a variety of challenging applications and environments Applications

Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application

Our Exhibition

2020.11	Electronica Munich, Germany
2019 9.24-9.26	Testing Expo, Shanghai
2018 11.12-11.15	Electronica Munich, Germany
2017 9.11-9.16	NAB Show,Netherlands
2016 4.11-4.15	HK Fair
2015 10.2-10.7	ICEEB, Brasil
2014 10.11-10.15	HK Fair
2014 4.11-4.15	HK Fair

Why Choose US?

100% compatible with lemo, , fischer connector
All the prcts we got CE, ROHS, SGS,ISO9000 certificate
Help you save at least 50% cost
Fast delivery: 2-15 working days
Cable assembly offer, help you save prction time
CE, ROHS2.0, SGS, ISO, Reach

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!

Etiket:

86-755-2987-2966

sales@raymoconnectors.com

Waterproof Circular Push Pull Connector 00 Series NIM - CAMAC CD / N 549 Type

pcb contacts connector

cable elbow connector

Circular push pull connector 00 Series NIM-CAMAC CD/N 549 type coaxial connector fixed socket with two nuts, for printed Circuit

Part No.:

EPE.00.250.NTN / RM-EPE-00-250KS

Prct Description:

00 Series NIM-CAMAC CD/N 549 type circular push pull connector coaxial connector fixed socket with two nuts, for printed Circuit

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
