Name: Compatible Mini Female Half Moon Connector CE Certification Effective Communication
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: Era.00.250.cll
Price: 12.30 USD
Availability: InStock

ERA.00.250.CLL RAYMO 00 Series Mini Female Socket 00 Coaxial Femlae Connector

RAYMO Factory Intrce

SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers.
This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military defence.

RAYMO Provided Service for YOU

OEM / ODEM
7*24HOURS
SMALL ORDER
FREE SAMPELS
FAST DELIVERY
CABLE ASSEBLY.
CE ROHS2.0 CERTIFIFIED

Description

Compatible with LEMO S ERA PANEL mount socket
Panle PCB connector Circular push pull connectors
00S 50OHM Coaxial connector
Straight PCB, solder and elbow PCB contacts are available too

RAYMO PART NO	LEMO PART NO
RM-ERA-00S-250-KS	ERA.00.250.CLL

Shell Size and Contact No.

Features

Shell Style/Model:ERA: Fixed receptacle, nut fixing
Keying:Circular (can rotate)
Housing Material:Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
Configuration:0.25 : 1 Coax (50 Ohm)
Rated Current :4 Amps
Contact Type: Coaxial 50 Ohm (Solder)
Max. Matings: 5000
Contact Dia.: 0.7 mm (0.028in)
Bucket Dia.: 0.6 mm (0.024in)
Test voltage: 2.1 kV (rms)
R (max): 6.1 mOhm
Vtest: 2100 V (AC), 3000 V (DC)
Impedance: 50 Ohm
VSWR: 1.09 + 0.11 * f/GHz

Technical Characteristics

Technical Characteristics
Temperature Range	- 65° C, +200° C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shell Material	brass with chrome plated	Humidity	up to 95% at 60° C/140F
Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>144hr
Climatical Category	50/175/21	Shielding (min)	> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating	IP 50	Endurance(shell)	5000 mating cycles

Applications

Medical
Test & measurement
Transport
Defense & Security
Broadcast
Energy

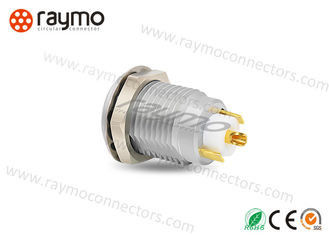

Pictures and Dimension

Compatible Mini Female Half Moon Connector CE Certification Effective Communication 0

Why choose us

8 years focus on connectors
Save your costs at least 50%
professional teams in R&D,manufacture,quality testing and export sales to make sure your connectors perfect and have relatively low prices
customized your own connectors according to your requirement
Factory supplier,provide fast delivery and perfect after-sales service you can purchase without scruple.
Help customers to make model selection : Just e-mail us and give the prtion information

FAQ

Can I order a small list ?, yes, you can, 1 piece is ok.
What quote do you offer? EXW, FOB, CIF and others ways according the your needs.
How transport? Sea Freight, Air Freight and others Express Delivery ways for you.
What is the quality of your prcts guarantee? We have passed ISO9001:2015 Quality Management System Certification, CQM Quality Management System Certification and IQNet Quality Management System Certification, If the quality doesn't accord the standard, you can exchange the goods for free.
Do you have after-sales service? Certainly,you can contact us at any time.

Etiket:

Menşe yeri:	Shenzhen, Çin
Marka adı:	RAYMO
Sertifika:	SGS, RoHS2.0, ISO:9001-2015, CE, REACH
Model numarası:	Era.00.250.cll

Min sipariş miktarı:	5 adet/adet
Fiyat:	negotiable
Ambalaj bilgileri:	Plastik Torba ve Karton
Teslim süresi:	5-7wds
Ödeme koşulları:	Western Union, L/C, D/A, D/P, T/T
Yetenek temini:	5000 Adet / Hafta

Tip:	ERA paneli soketi	Kabuk boyutu:	00s, 0s, 1s, 2s
İletişim:	Koaksiyel pim, 50ohm	Cinsiyet:	Kadın teması
yalıtkan:	PPS, Peek mevcuttur	IP Sıralaması:	IP50
